STAR-M Ceramic Type Edge Trimmer No. 4953
VAT, import taxes, customs duties, tariffs, and related fees are NOT included in our prices. The shipping company charges you these fees, after shipment.
SUMMARY
Finish protruding decorative tape and edge banding by sliding the trimmer along the edge. Made in Japan by STAR-M, the No. 4953 series combines a ceramic blade with a choice of square-edge or chamfered finishes.

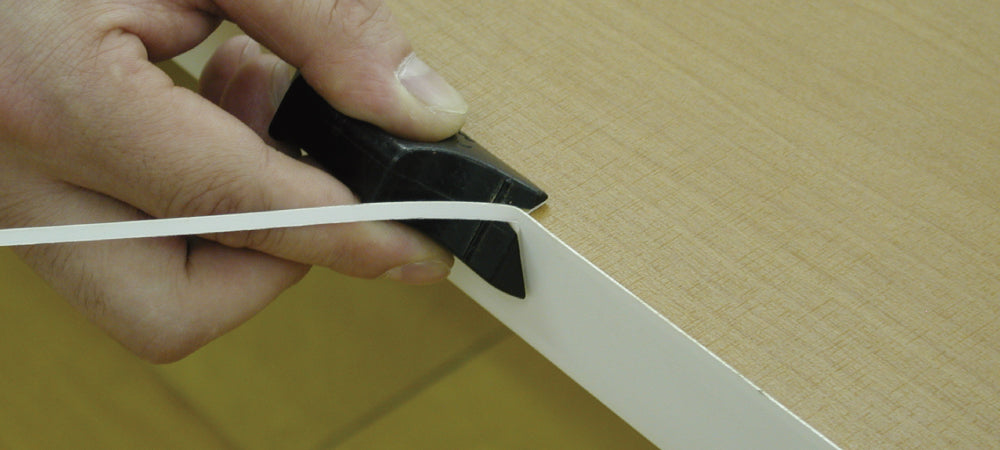

Slide the tool back and forth along the edge to remove protruding tape. Choose 4953-K or the improved square type 4953-KR for a square-edge finish, or choose 4953-M03, 4953-M06 or 4953-M for the listed chamfer sizes of 0.3, 0.6 or 1.0. Each model has the same 76 × 22 × 30 mm body dimensions.
FEATURES
-
Made in Japan by STAR-M
A Japanese-made edge-trimming tool for finishing protruding decorative tape and edge banding. -
Ceramic Cutting Blade
The ceramic blade provides a smooth sliding action for trimming protruding decorative tape and edge banding. -
Back-and-Forth Trimming
Remove the protruding portion by sliding the tool back and forth along the edge. -
Choose Your Edge Finish
Square and chamfering models let you select the tool according to the finish you want. -
Clearance to Help Reduce Surface Damage
A gap between the tool body and the tape is designed to help reduce scratching during trimming. It is not a guarantee against surface damage. -
Compact ABS Resin Body
All five models measure 76 mm long, 22 mm wide and 30 mm high.
VIDEO
CHOOSING YOUR MODEL
Select the model from the Type options before ordering. The numbers 0.3, 0.6 and 1.0 identify the listed chamfer sizes, not the tool's overall dimensions. For a lighter edge break, choose 0.3; for a larger chamfer, choose 0.6 or 1.0 according to the required finish.
| Model | Finish / Selection |
|---|---|

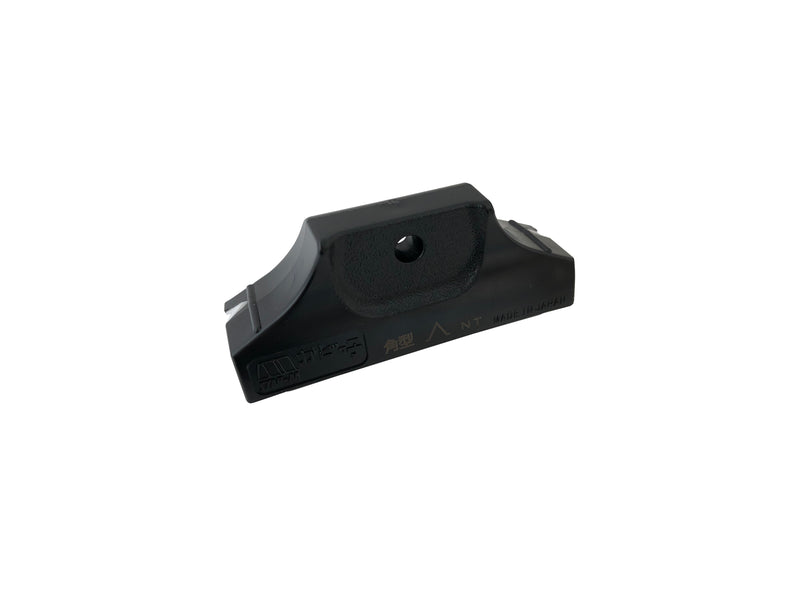

| 4953-K | Square type: choose for a square-edge finish rather than a chamfer. |

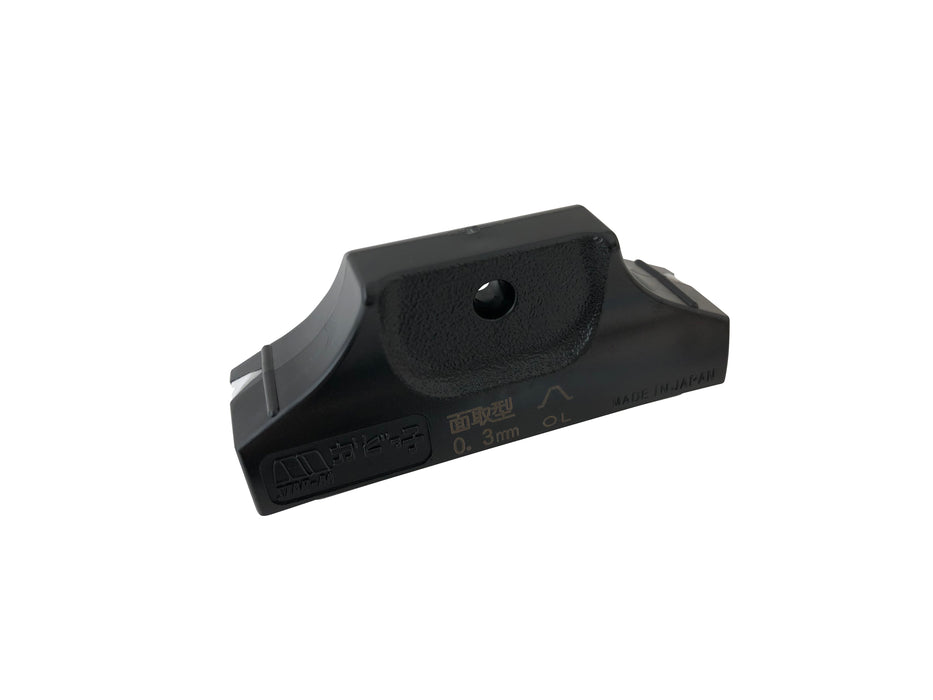

| 4953-M03 | Chamfered type 0.3: the smallest listed chamfer option. |

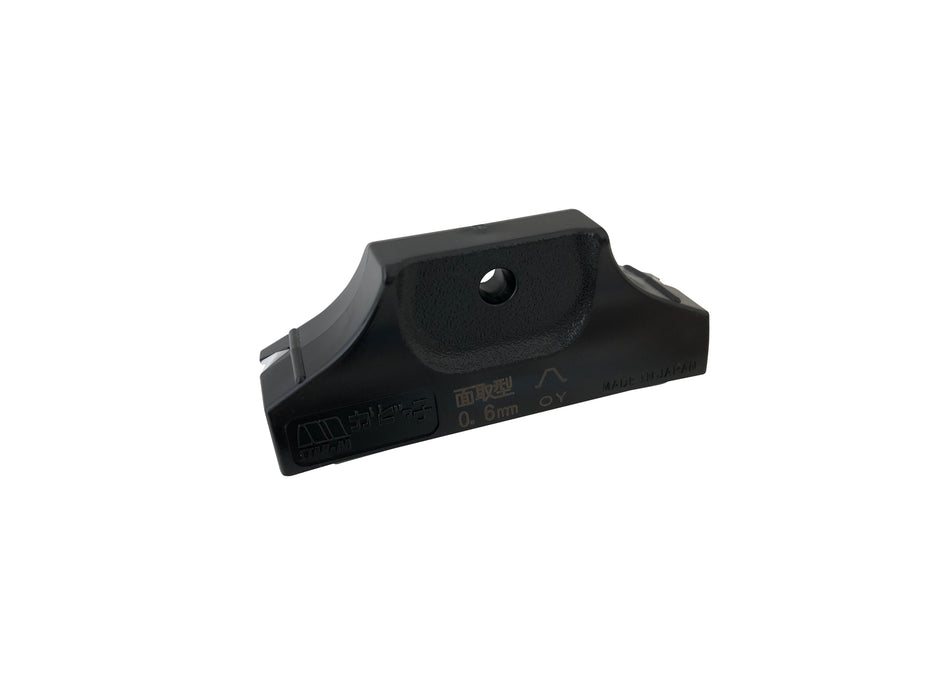

| 4953-M06 | Chamfered type 0.6: between the 0.3 and 1.0 options. |

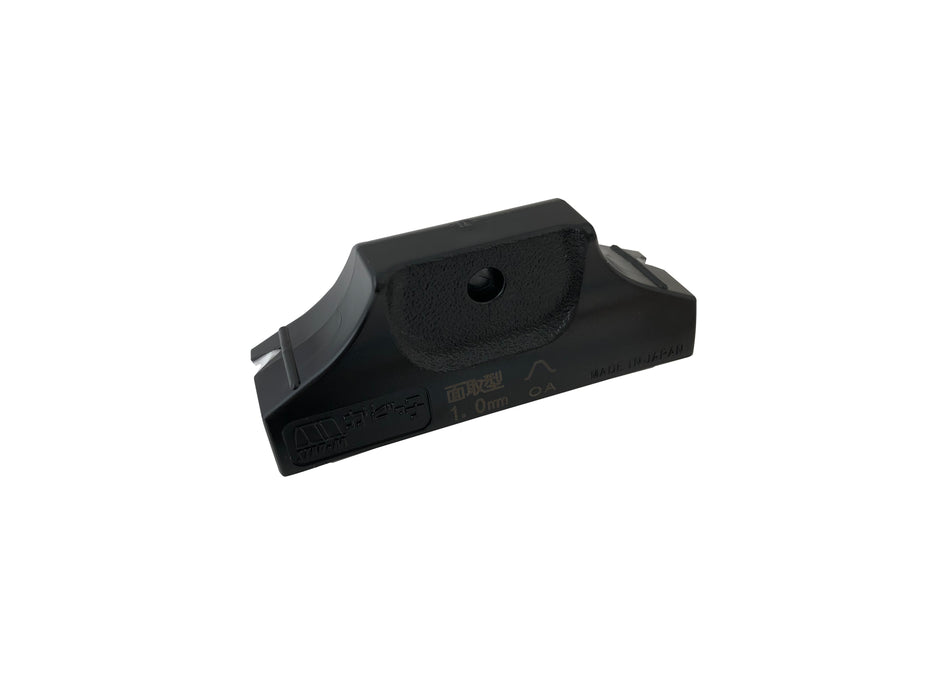

| 4953-M | Chamfer type 1.0: the largest listed chamfer option. |

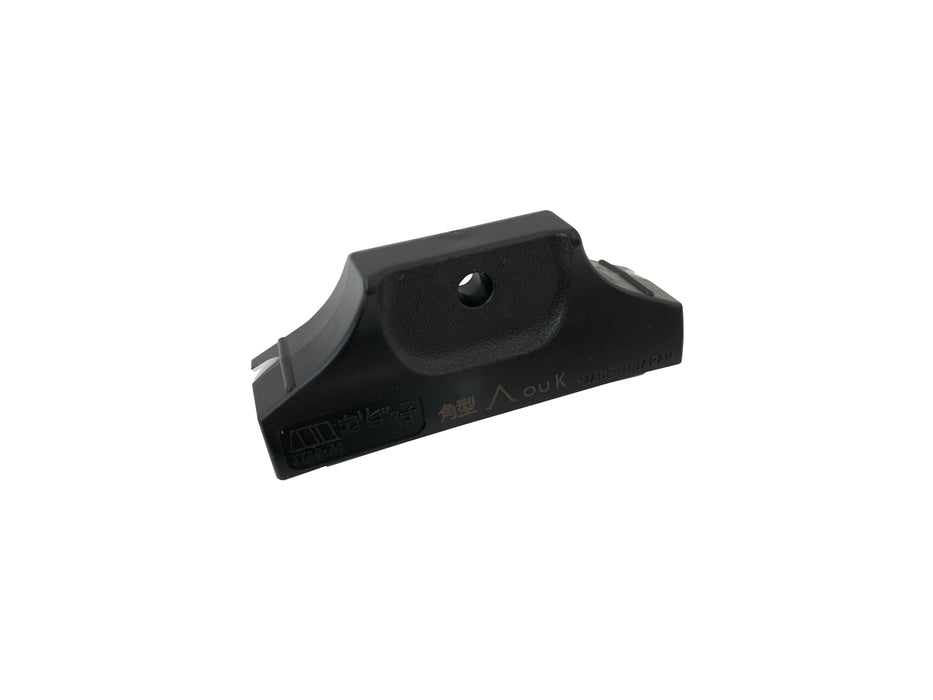

| 4953-KR | Square type (improved type): an alternative square-edge model, not a chamfering model. |
SPECIFICATIONS
| Country of Manufacture | Japan |
|---|---|
| Applicable Materials | Resin-based tape, paper-based tape, security film |
| Body Material | ABS resin |
| Blade Material | Ceramic |
Dimensions below are in mm. L = Length, W = Width, H = Height.
| Model / Type | Dimensions (L × W × H) |
|---|---|
| 4953-K / Square | 76 × 22 × 30 mm |
| 4953-M03 / Chamfered type 0.3 | 76 × 22 × 30 mm |
| 4953-M06 / Chamfered type 0.6 | 76 × 22 × 30 mm |
| 4953-M / Chamfer type 1.0 | 76 × 22 × 30 mm |
| 4953-KR / Square type (improved type) | 76 × 22 × 30 mm |
