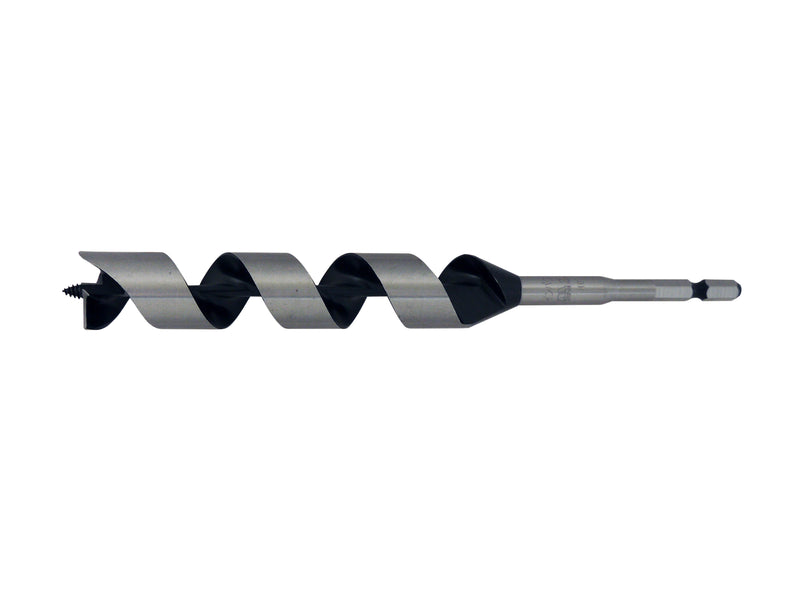

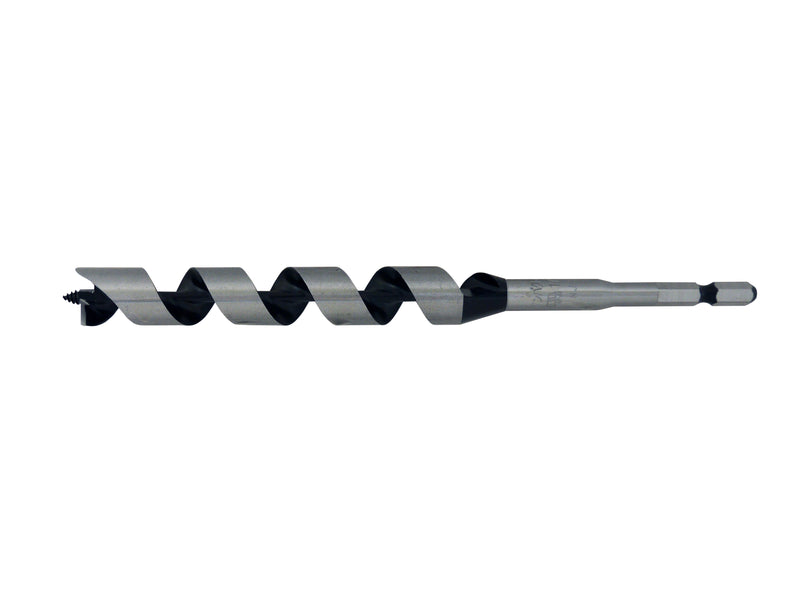

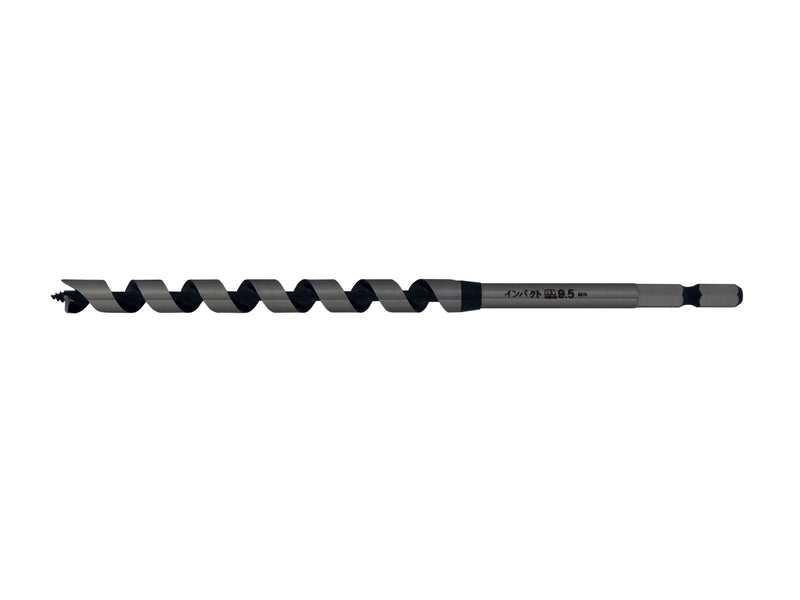

STAR-M Auger Impact Bit Drill Medium Type No.7M

SUMMARY

For drilling slightly deeper through holes with an impact driver.

All sizes are 6.35 mm hexagonal shafts compatible with impact drivers.
By making the tip screw and marking blade smaller than conventional drills, the cutting resistance when using an impact driver is suppressed and the battery life is increased by 20%.
The tip of the drill is a screw type.
Using the rotational force of the tip screw, smooth drilling is possible without pressing.
The size 26mm or larger is a double-edged, double-claw type that takes cutting resistance into account.
Available in short, middle and long types depending on the drilling depth.

Size: D Overall length: L Thread length: SL Shaft diameter: d (mm)

Part number	Size	Length	Screw length	Shaft diameter
7M-030	3	110	60	6.35

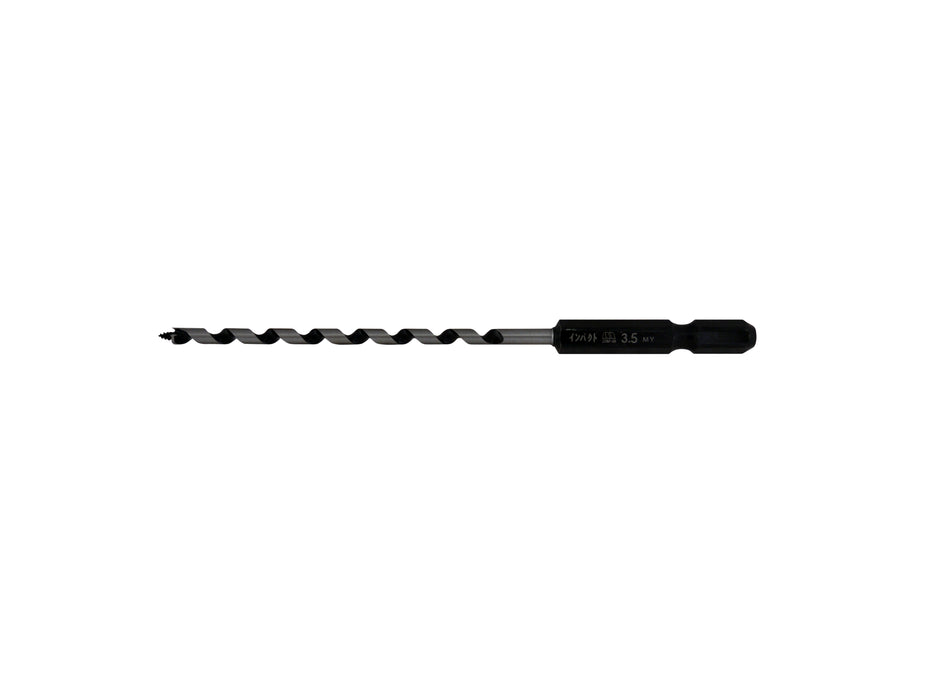

7M-035	3.5	120	70	6.35

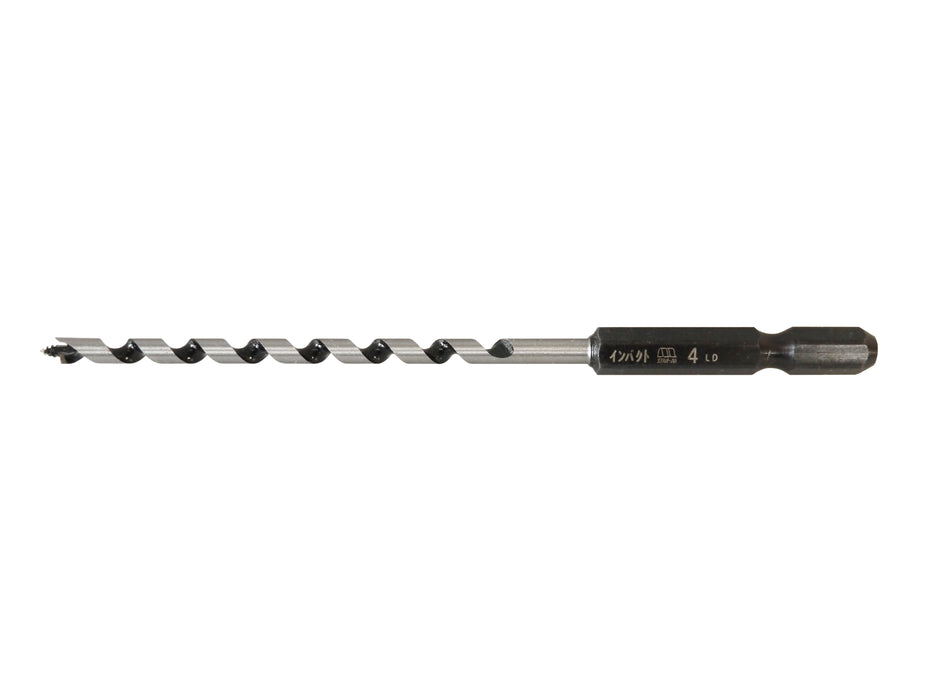

7M-040	4	120	70	6.35
7M-045	4.5	140	90	6.35
7M-050	5	140	90	6.35

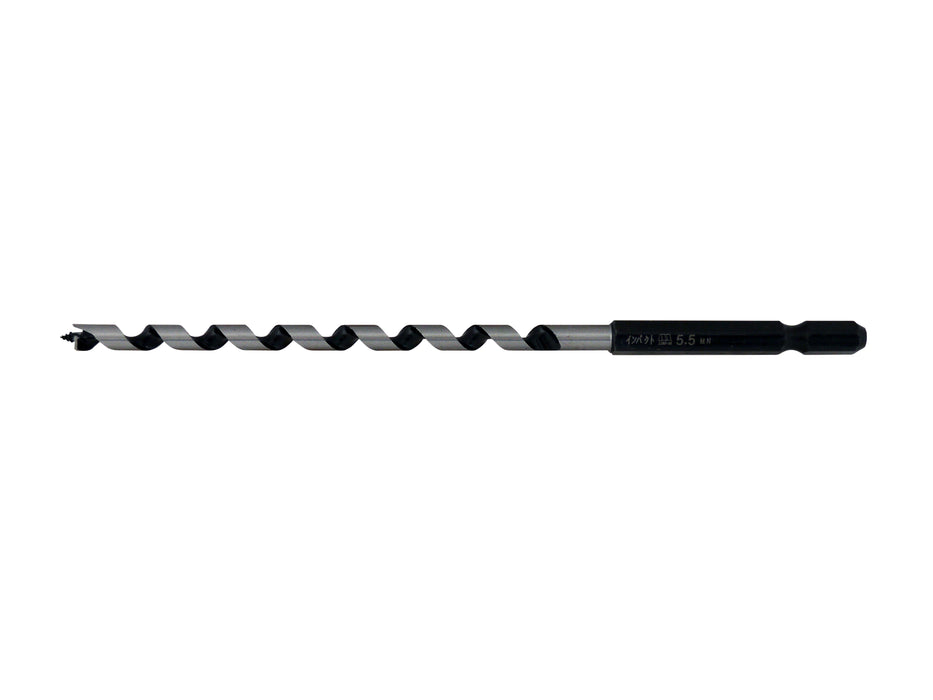

7M-055	5.5	160	100	6.35

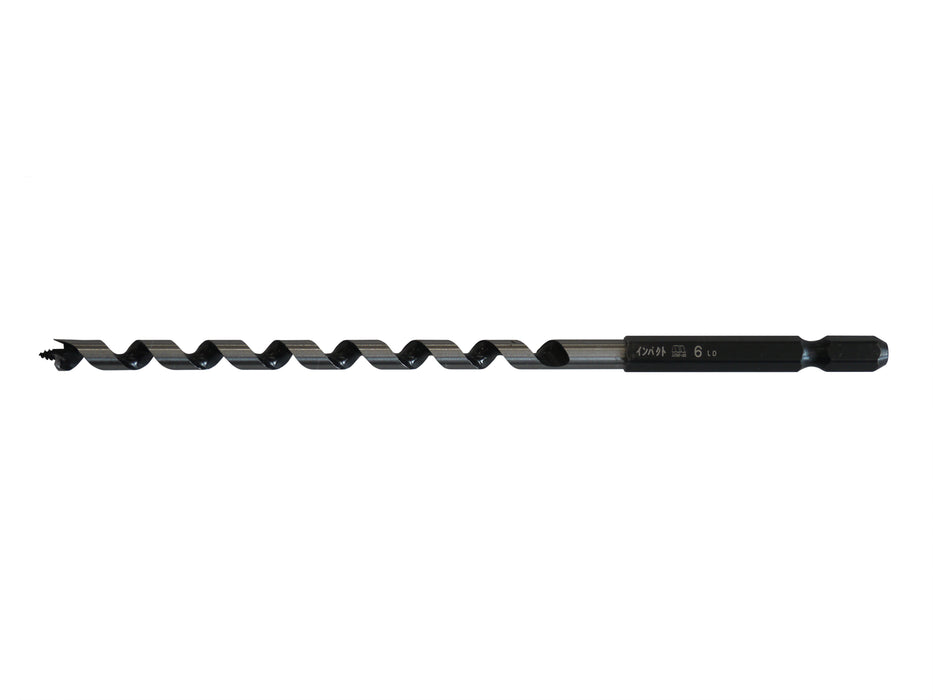

7M-060	6	160	100	6.35

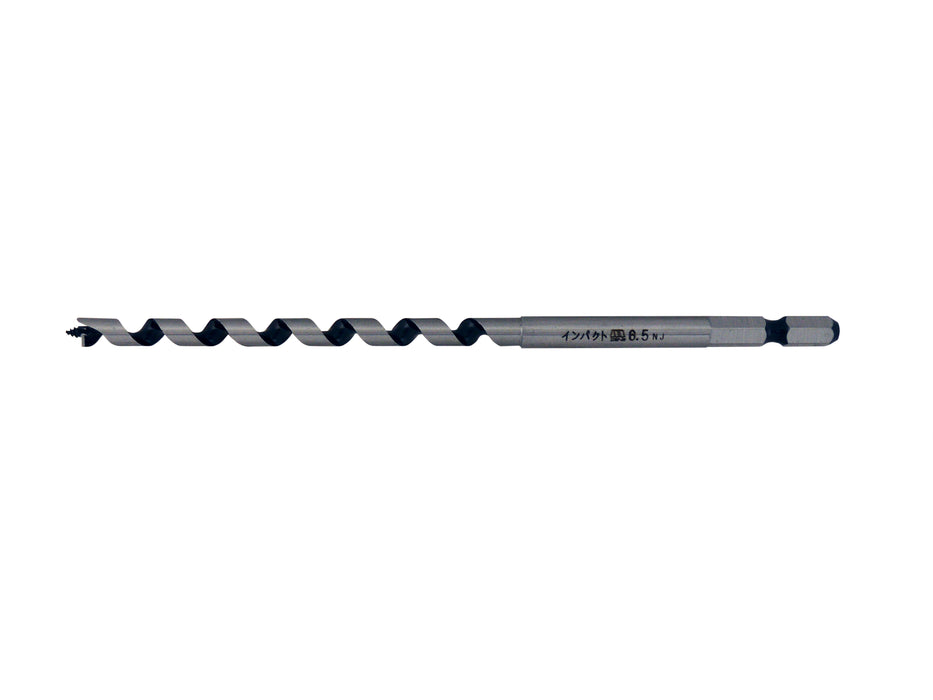

7M-065	6.5	170	100	6.35

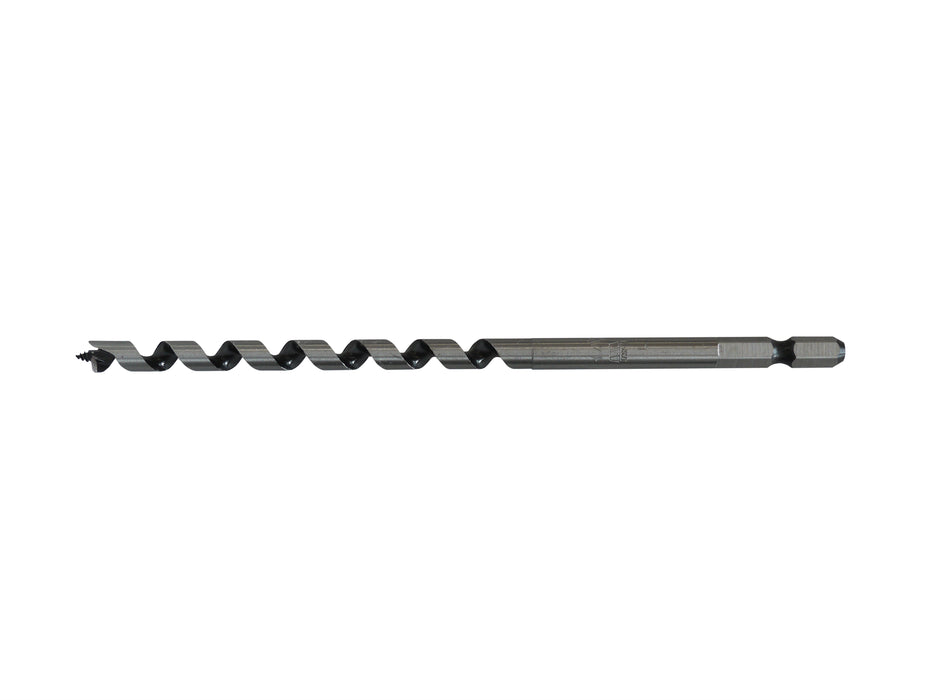

7M-070	7	170	100	6.35

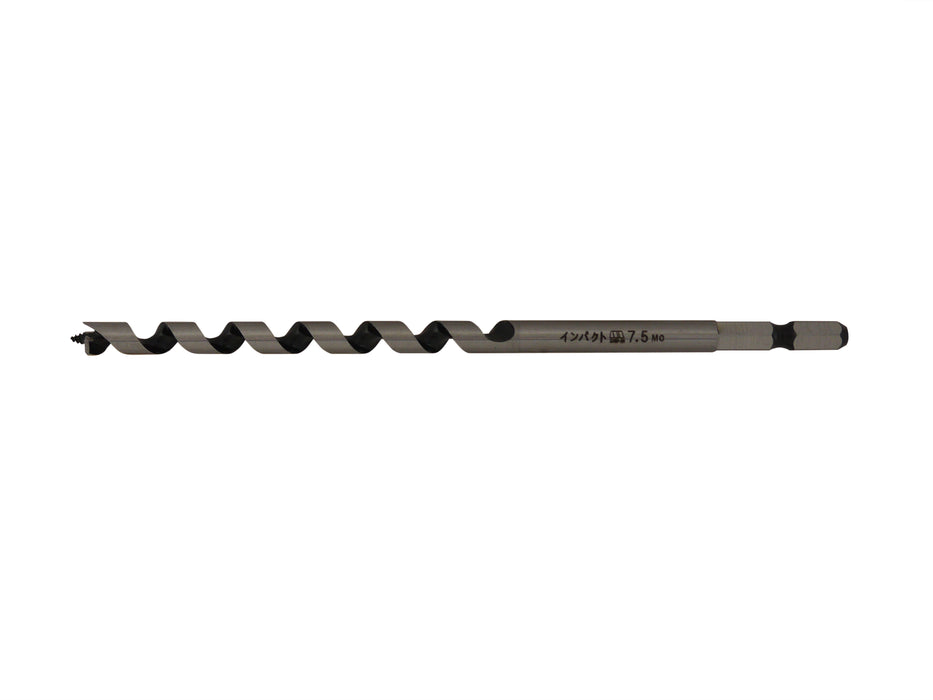

7M-075	7.5	170	100	6.35

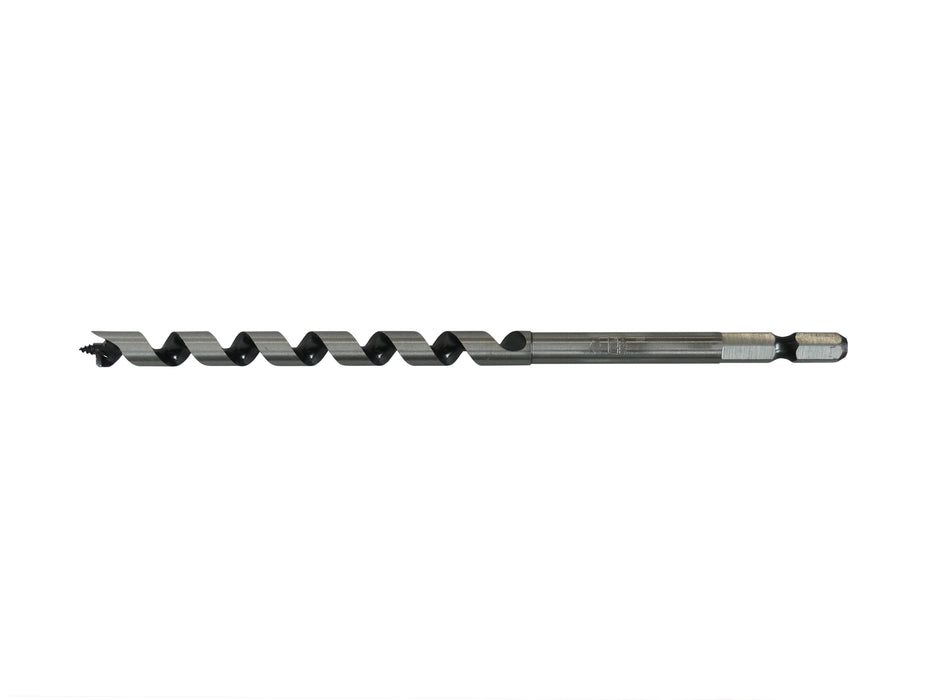

7M-080	8	170	100	6.35

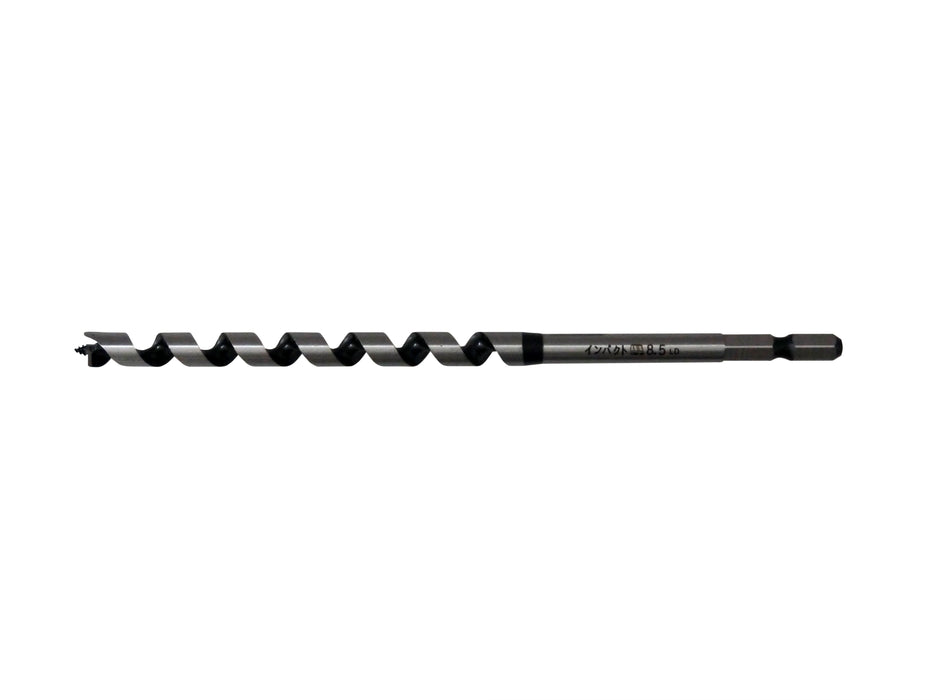

7M-085	8.5	180	110	6.35

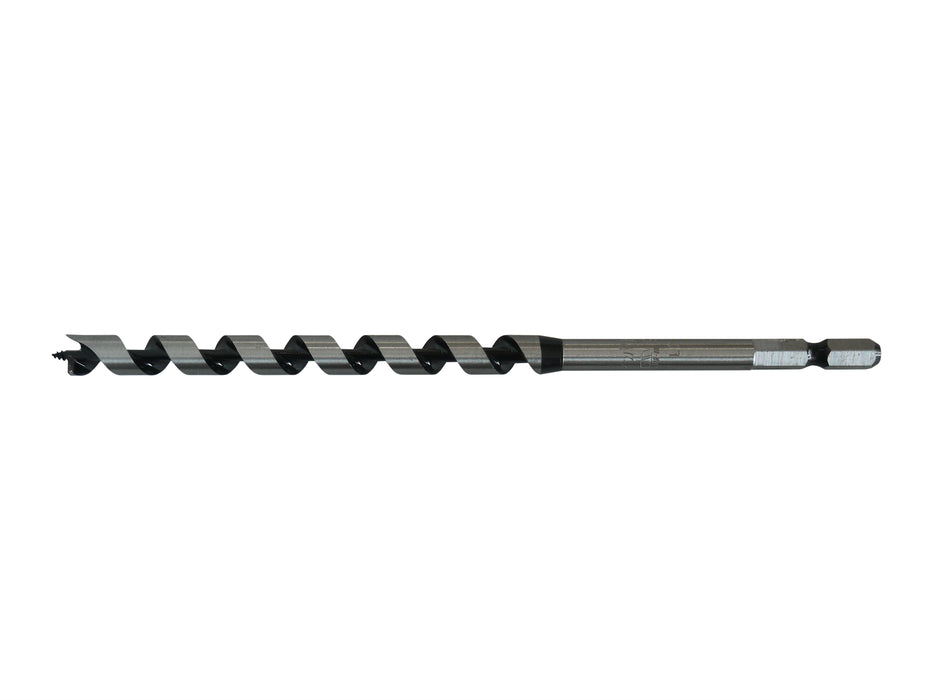

7M-090	9	180	110	6.35

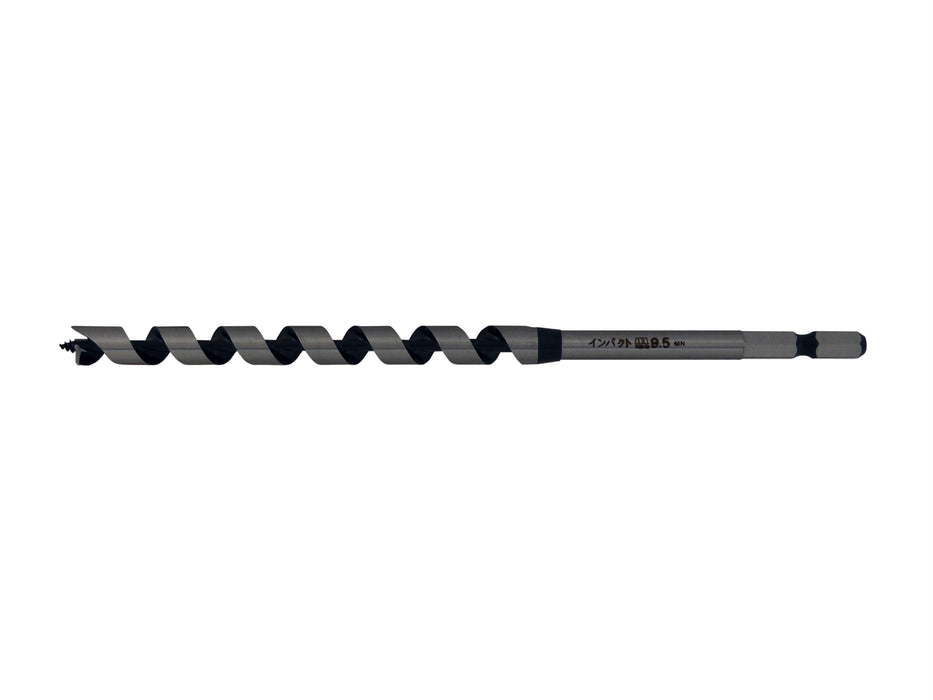

7M-095	9.5	190	120	6.35
7M-100	10	190	120	6.35

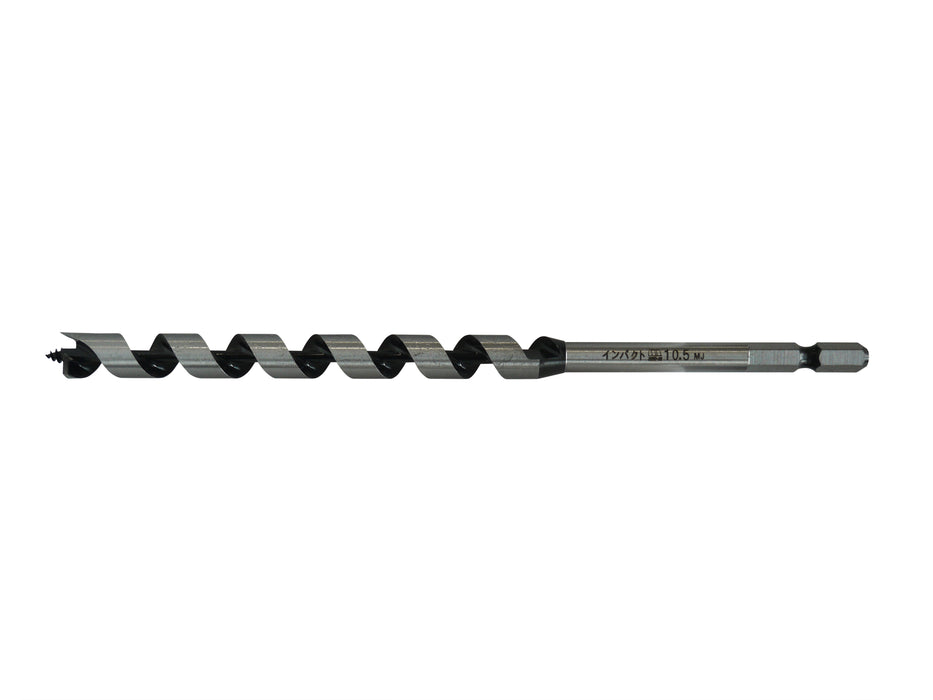

7M-105	10.5	190	120	6.35
7M-110	11	190	120	6.35

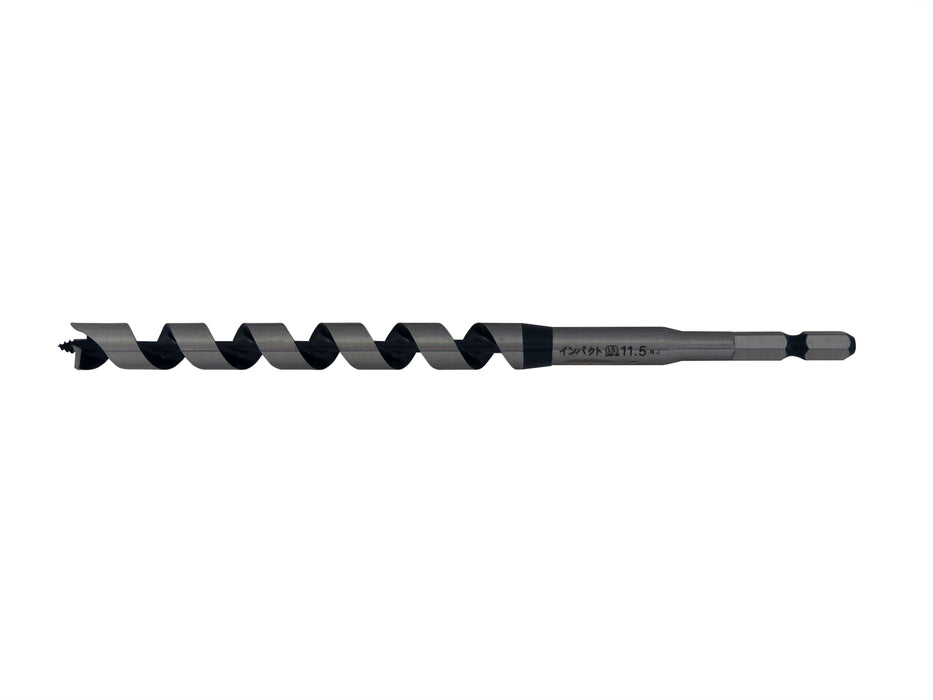

7M-115	11.5	190	120	6.35

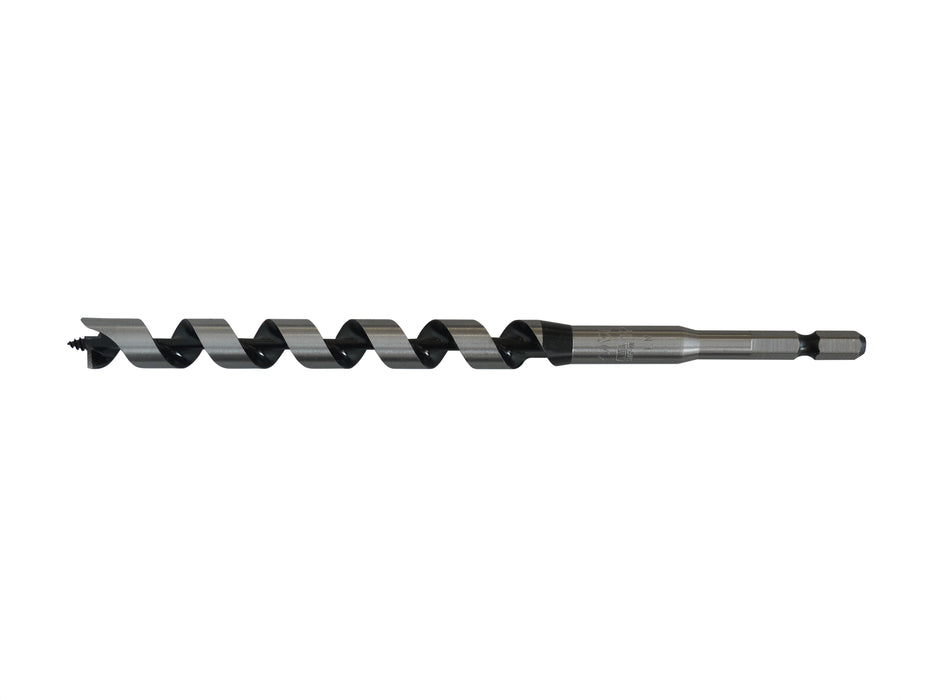

7M-120	12	190	120	6.35

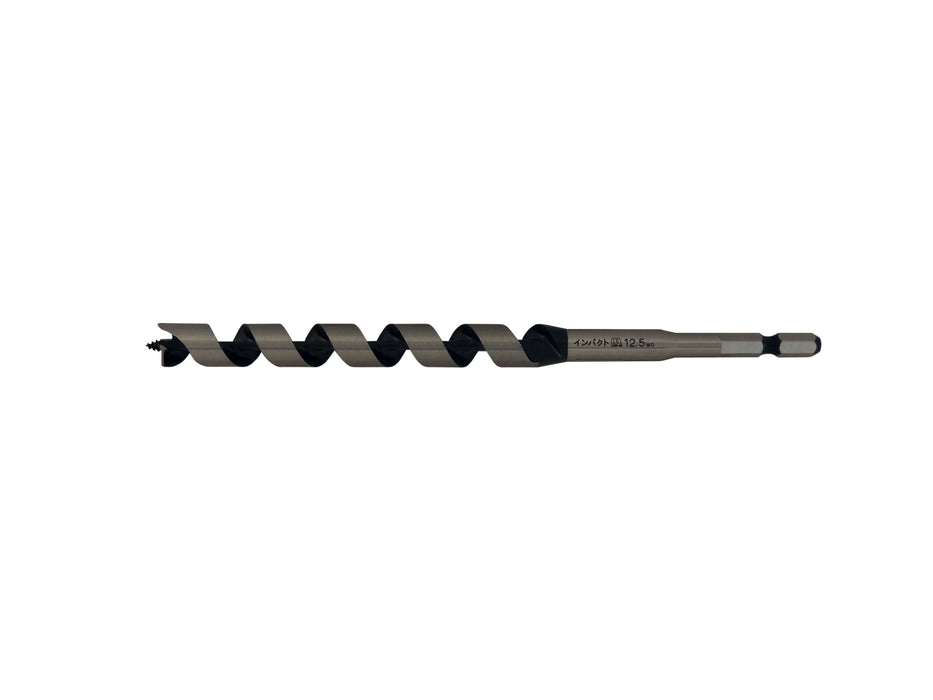

7M-125	12.5	190	120	6.35

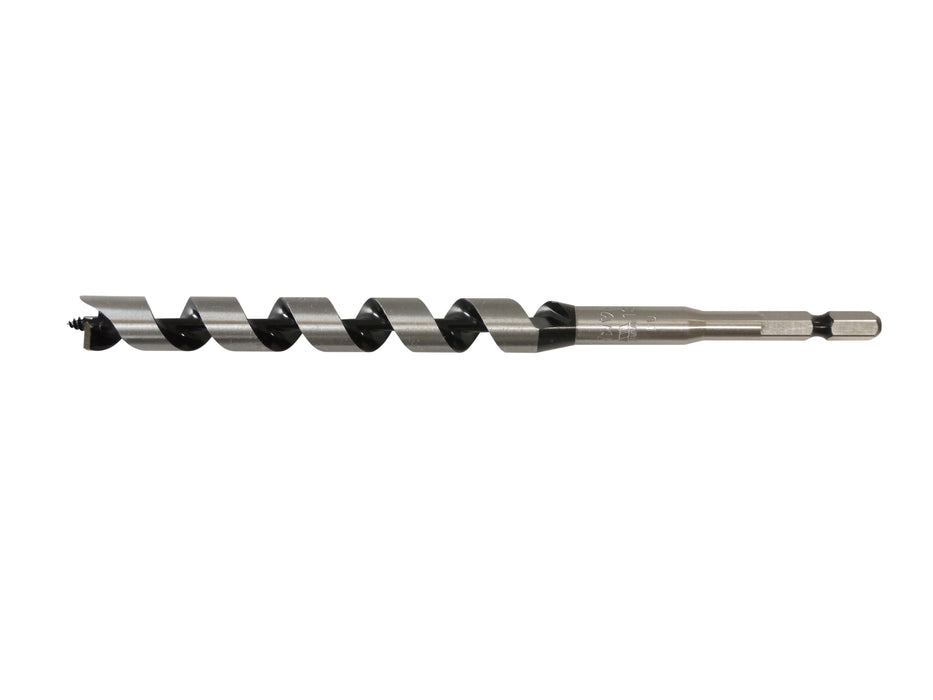

7M-130	13	190	120	6.35

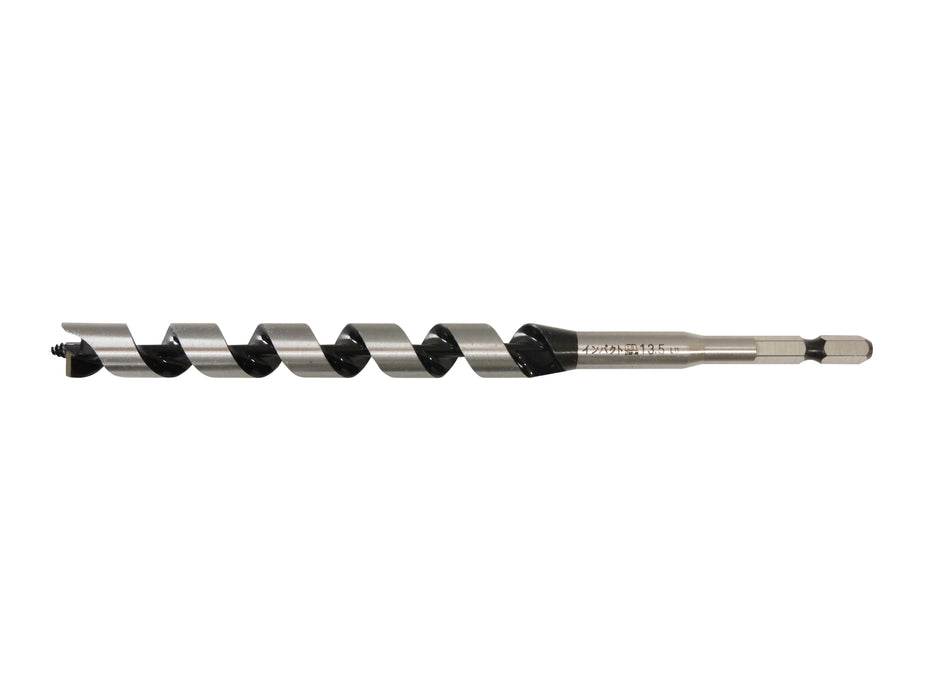

7M-135	13.5	200	130	6.35

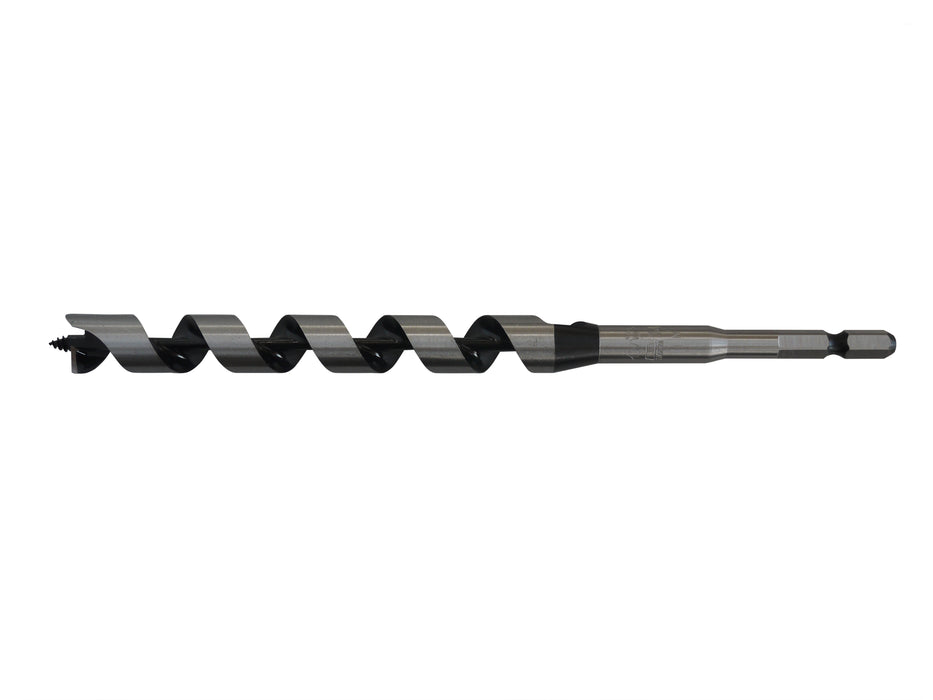

7M-140	14	200	130	6.35

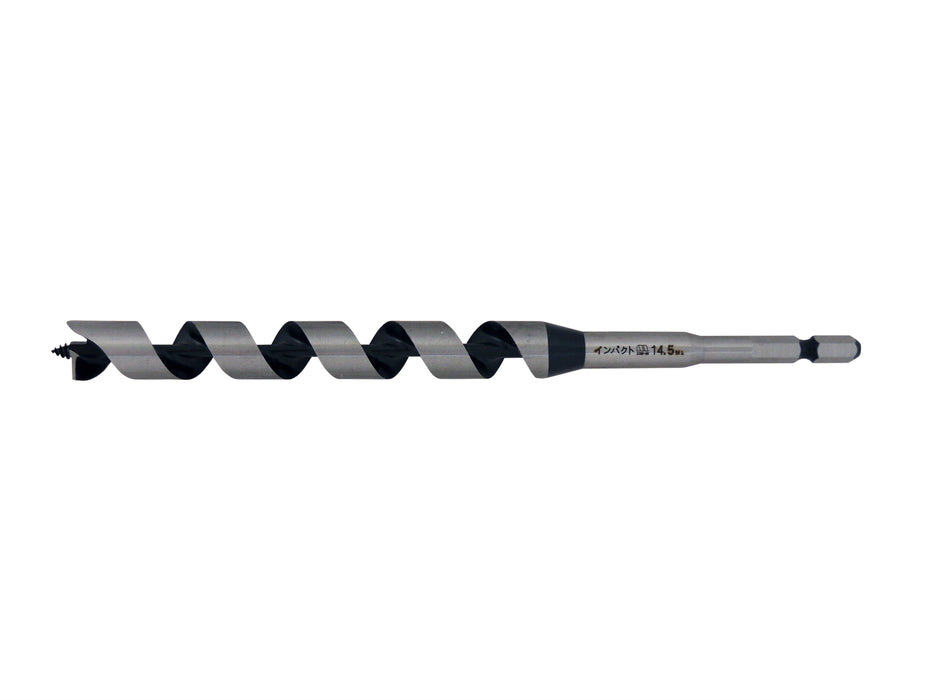

7M-145	14.5	200	130	6.35

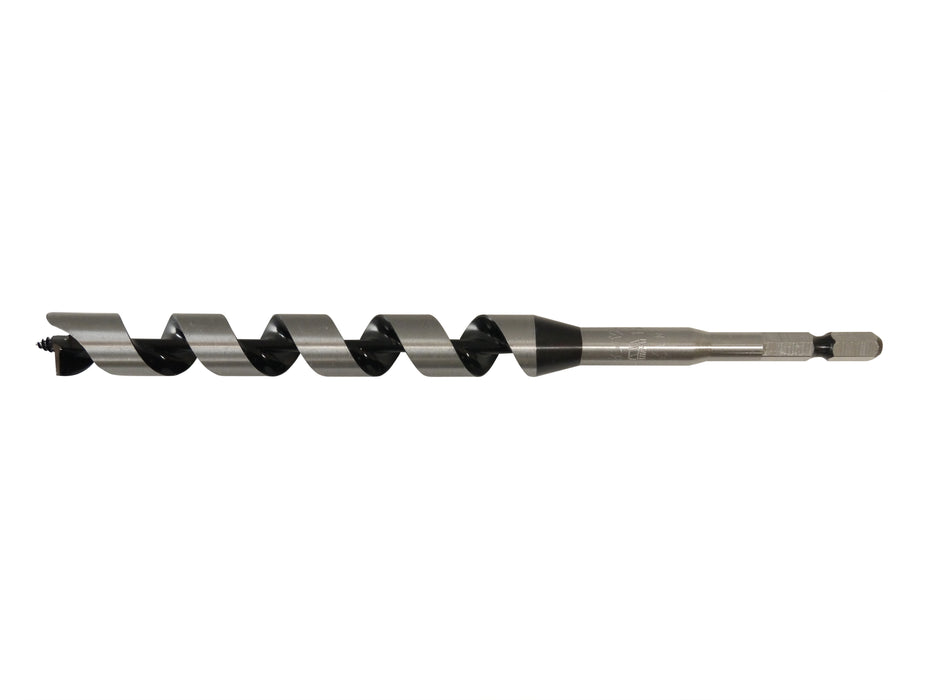

7M-150	15	200	130	6.35

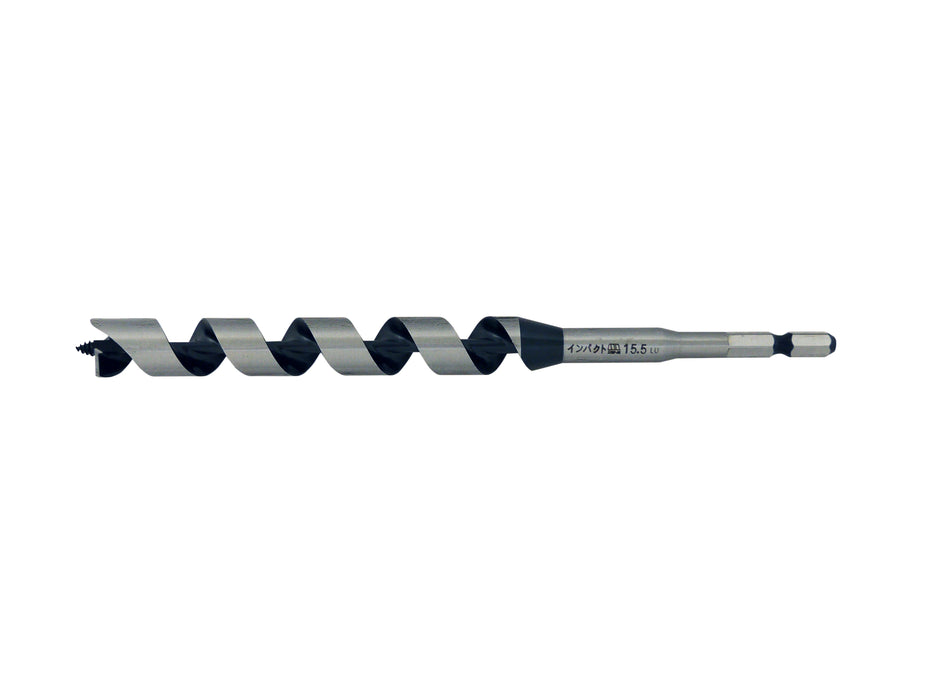

7M-155	15.5	200	130	6.35

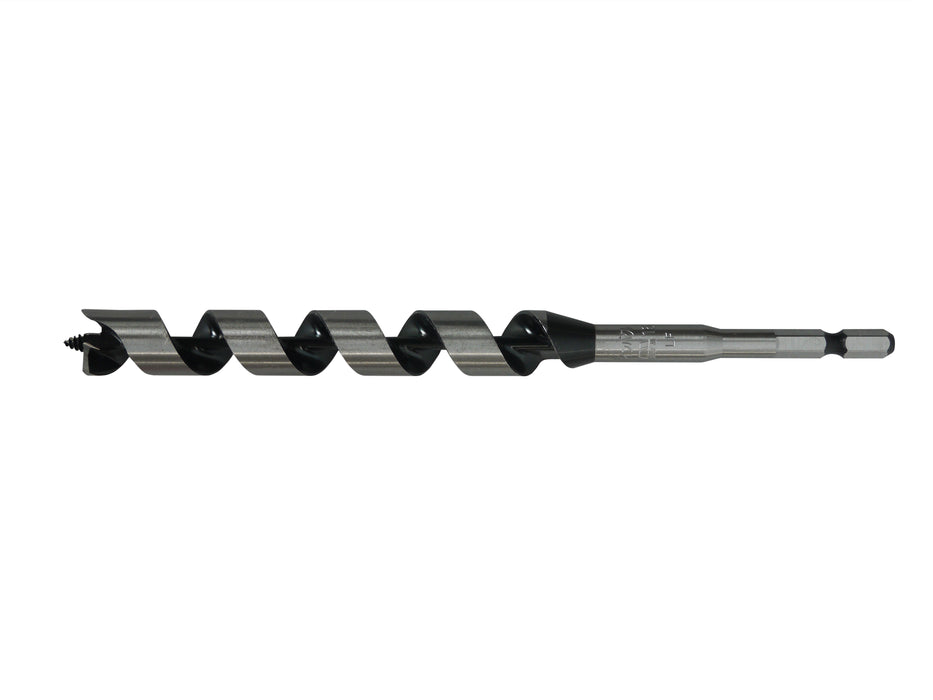

7M-160	16	200	130	6.35

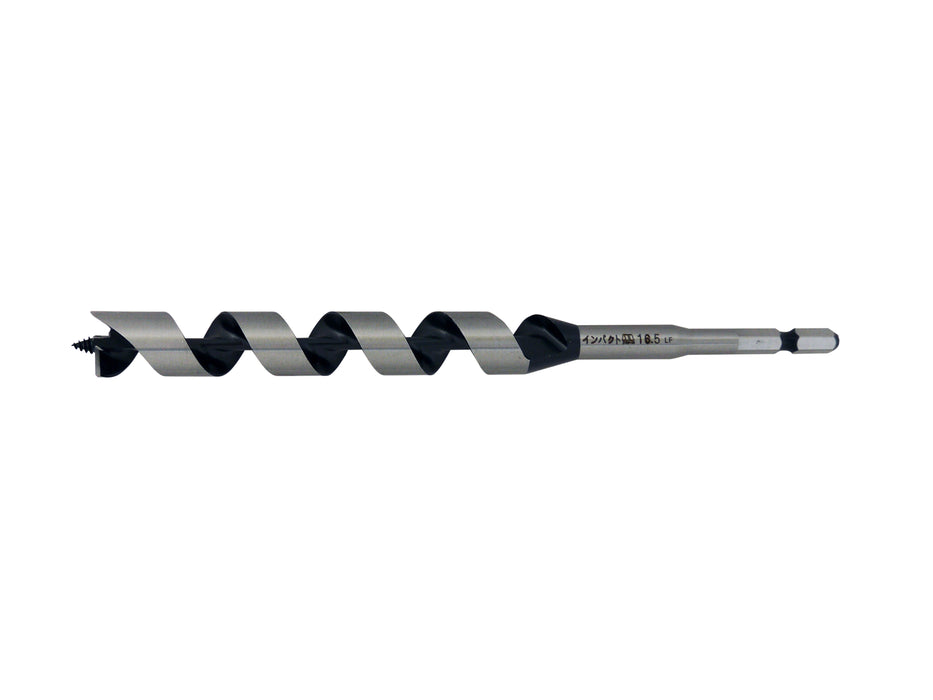

7M-165	16.5	200	130	6.35

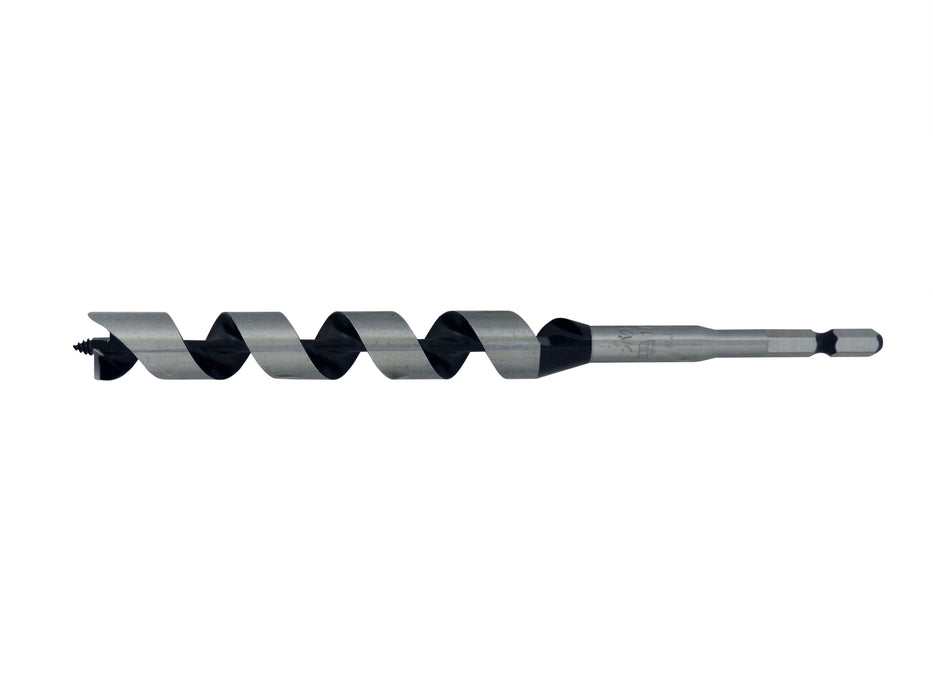

7M-170	17	200	130	6.35

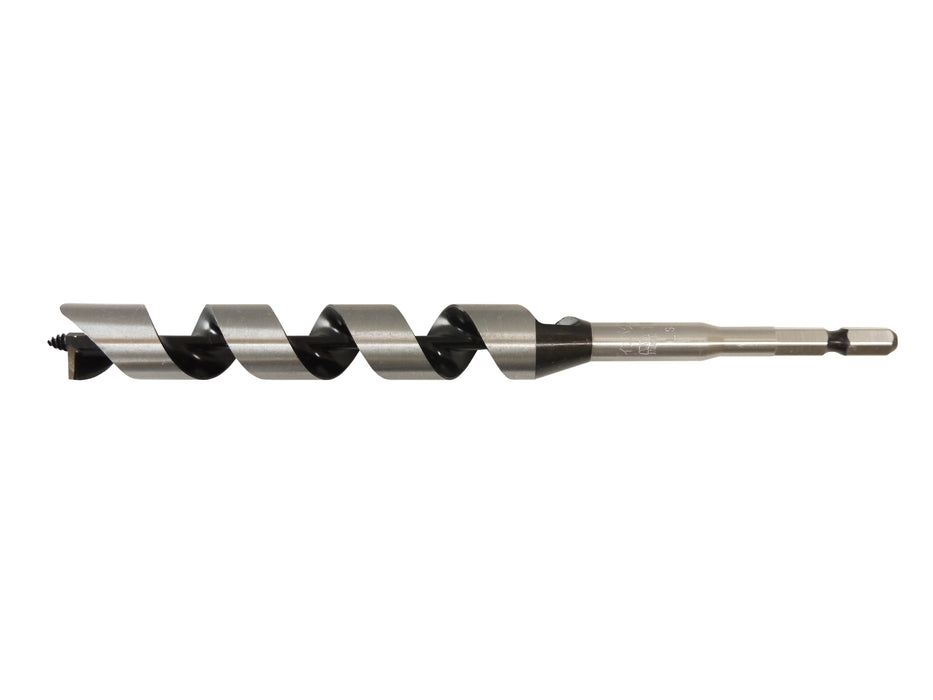

7M-180	18	200	130	6.35
7M-190	19	200	130	6.35

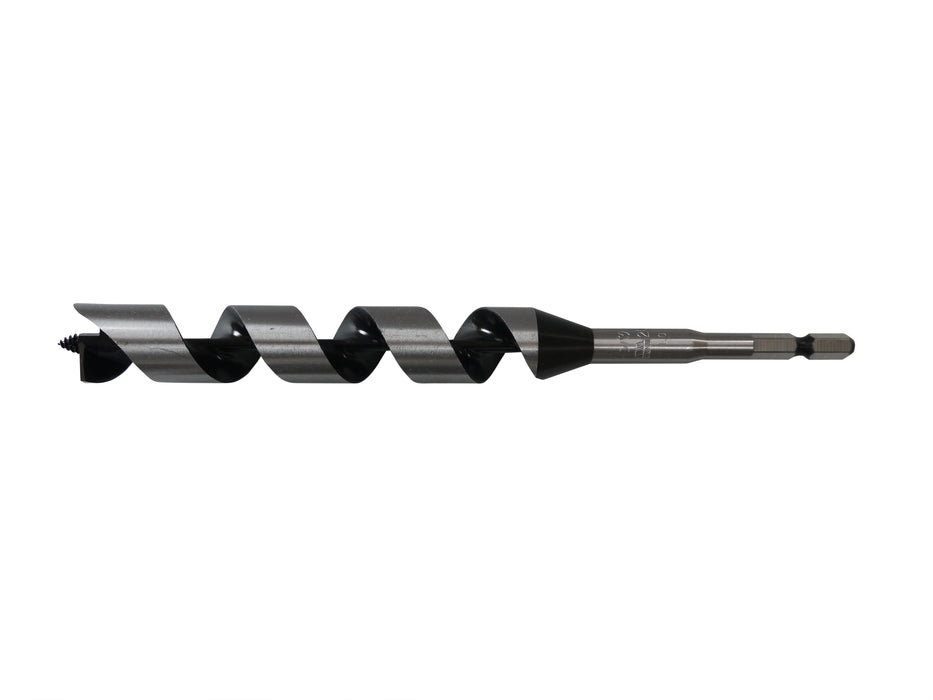

7M-200	20	205	135	6.35

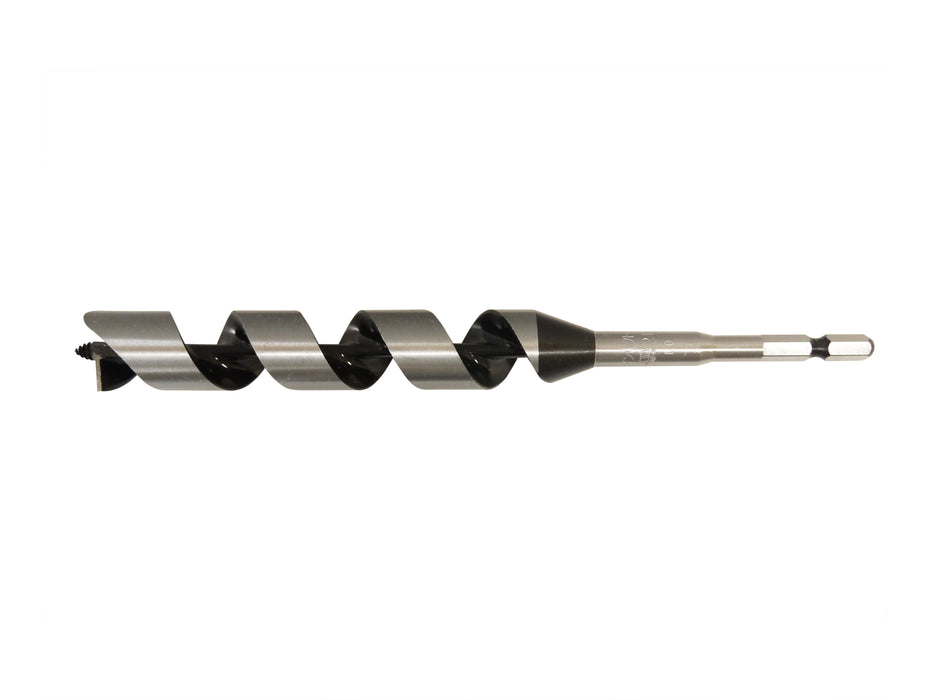

7M-210	21	205	135	6.35

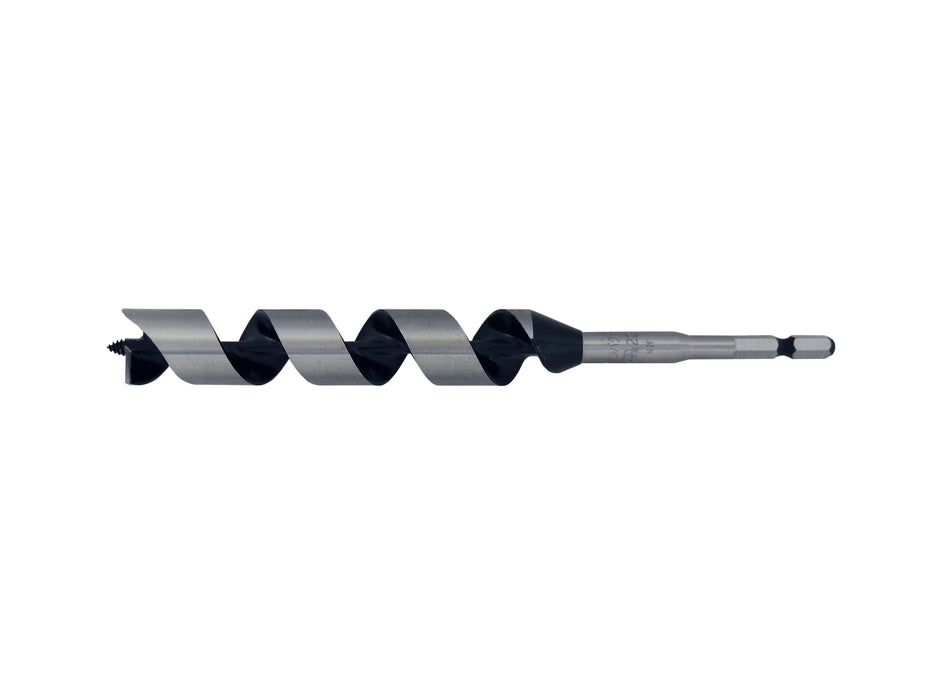

7M-220	22	205	135	6.35

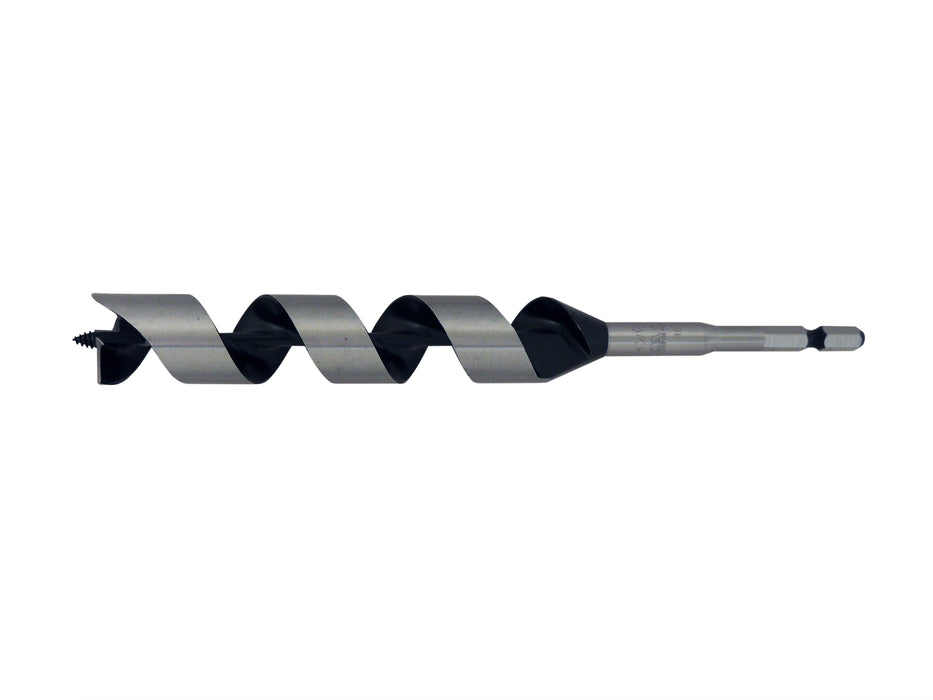

7M-230	23	205	135	6.35
7M-240	24	205	135	6.35

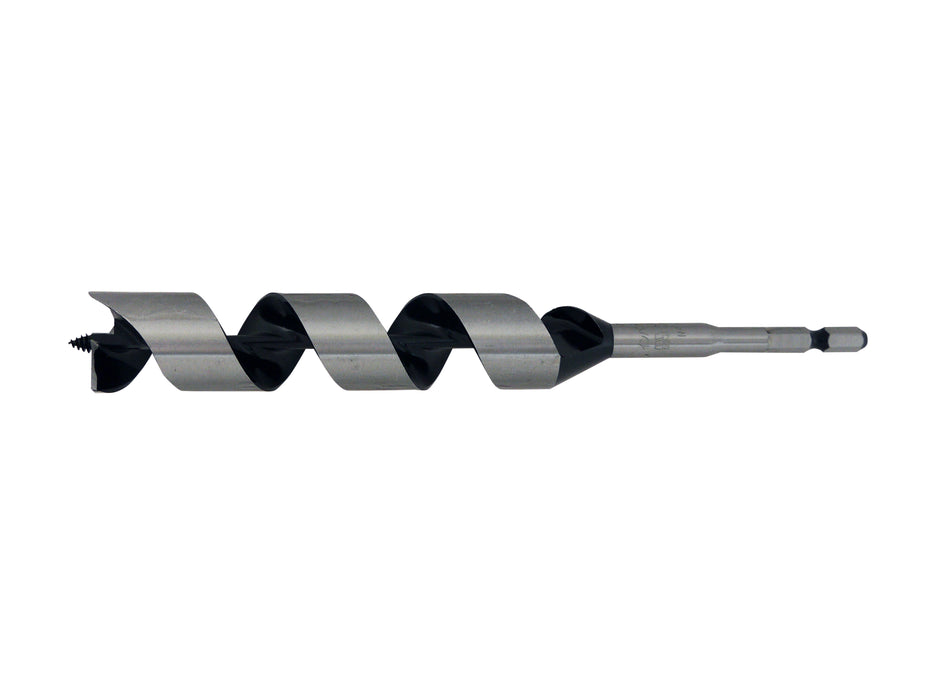

7M-250	25	205	135	6.35
