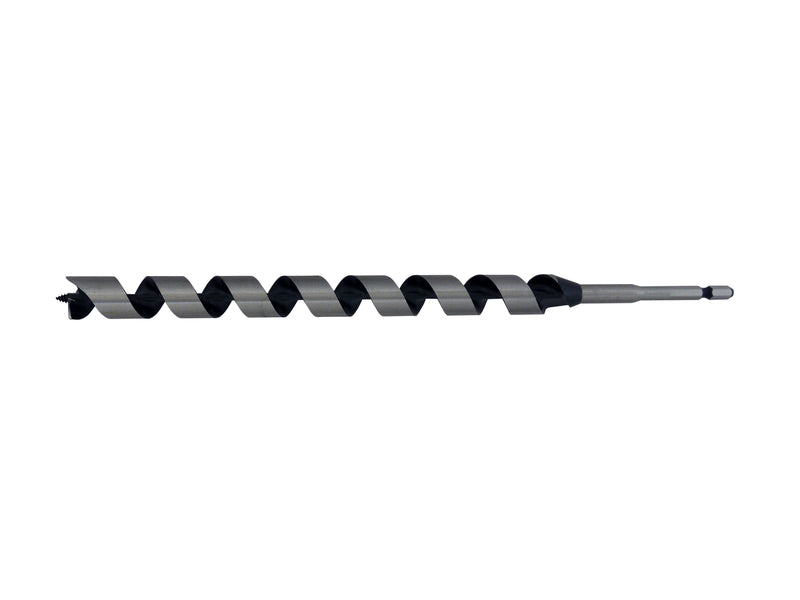

STAR-M Auger Impact Bit Drill Long Type No.7L

SKU 4962660069031
by STAR-M
Original price ¥1,560 - Original price ¥2,850
Original price
¥1,700
¥1,560 - ¥2,850
Current price ¥1,700
Size: 7L-030

Shipping calculated at checkout. Please click Add to cart button to proceed.

SUMMARY

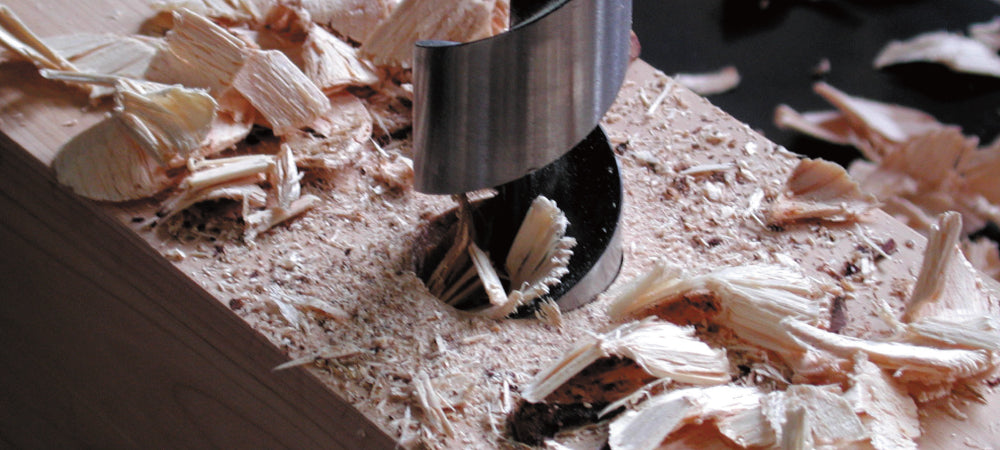

For drilling deep through holes with an impact driver.

FEATURES

  • All sizes are 6.35 mm hexagonal shafts compatible with impact drivers.
  • By making the tip screw and marking blade smaller than conventional drills, the cutting resistance when using an impact driver is suppressed and the battery life is increased by 20%.
  • The tip of the drill is a screw type.
  • Using the rotational force of the tip screw, smooth drilling is possible without pressing.
  • The size 26mm or larger is a double-edged, double-claw type that takes cutting resistance into account.
  • Available in short, middle and long types depending on the drilling depth.

SPECIFICATIONS

Applicable material General wood
Material Ordinary steel
Applicable models Impact driver 14.4V or higher
Drill driver 14.4V or higher
Appropriate RPM 3,000 rpm or less
Axis type Hexagonal axis

Size: D Overall length: L Thread length: SL Shaft diameter: d (mm)

Part number Size Length Screw length Shaft diameter
7L-030 3 185 125
6.35

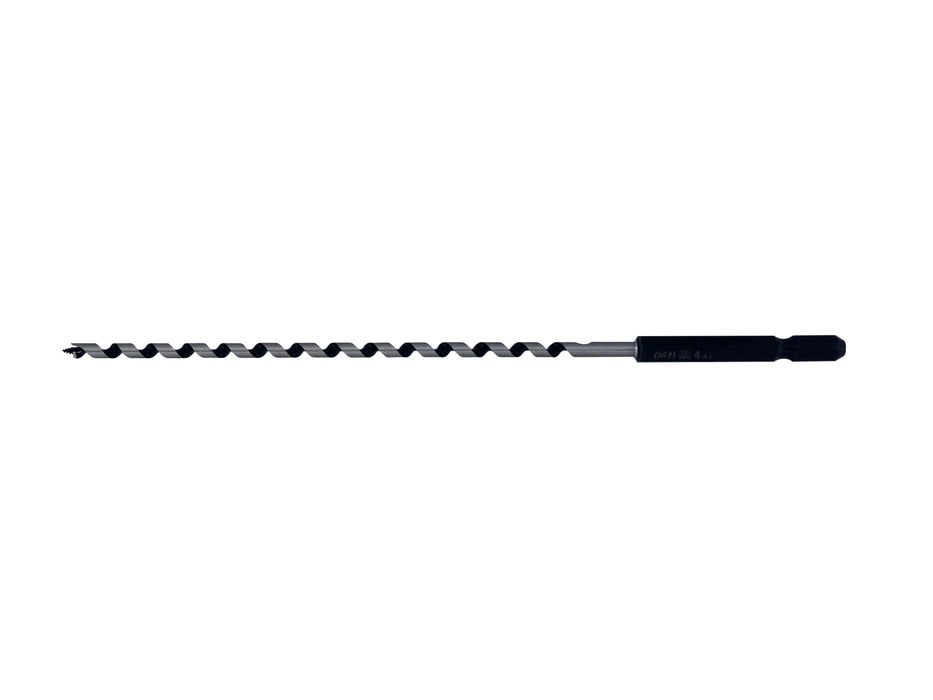

7L-040 4 190 130
6.35

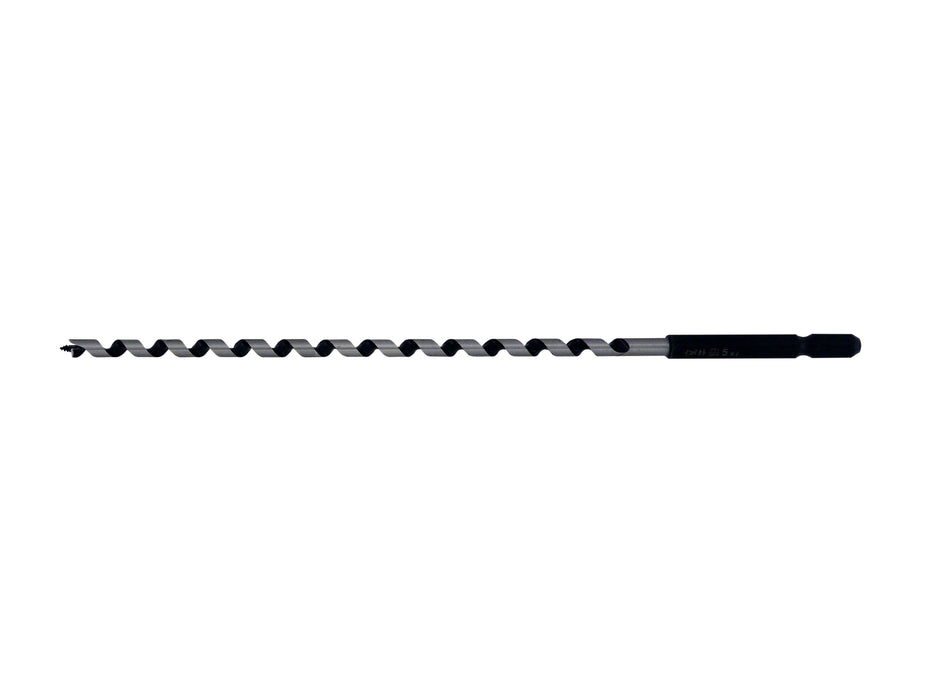

7L-050 5 210 150
6.35

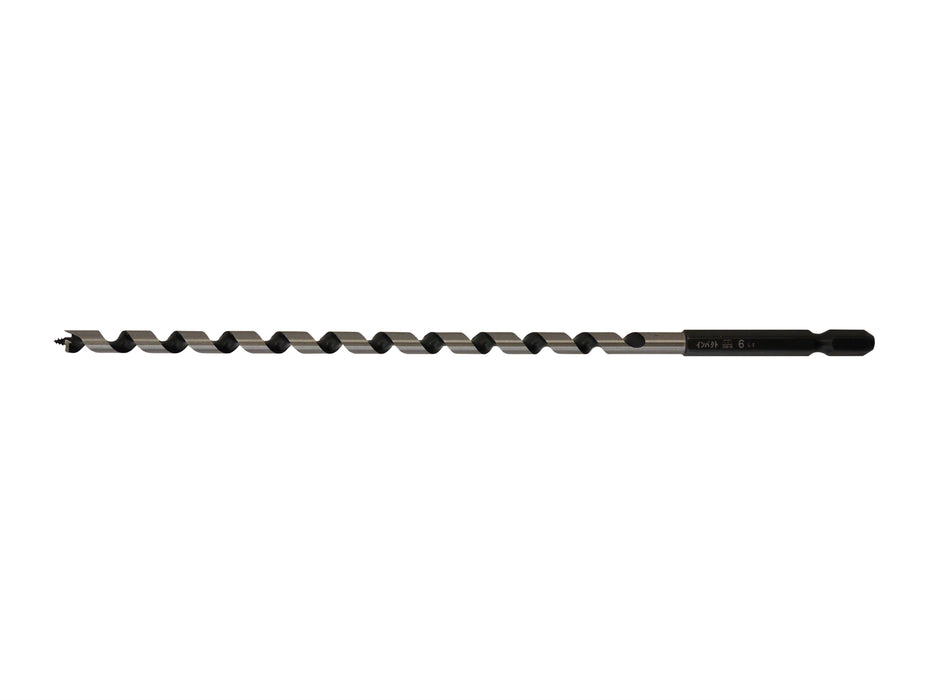

7L-060 6 210 150
6.35

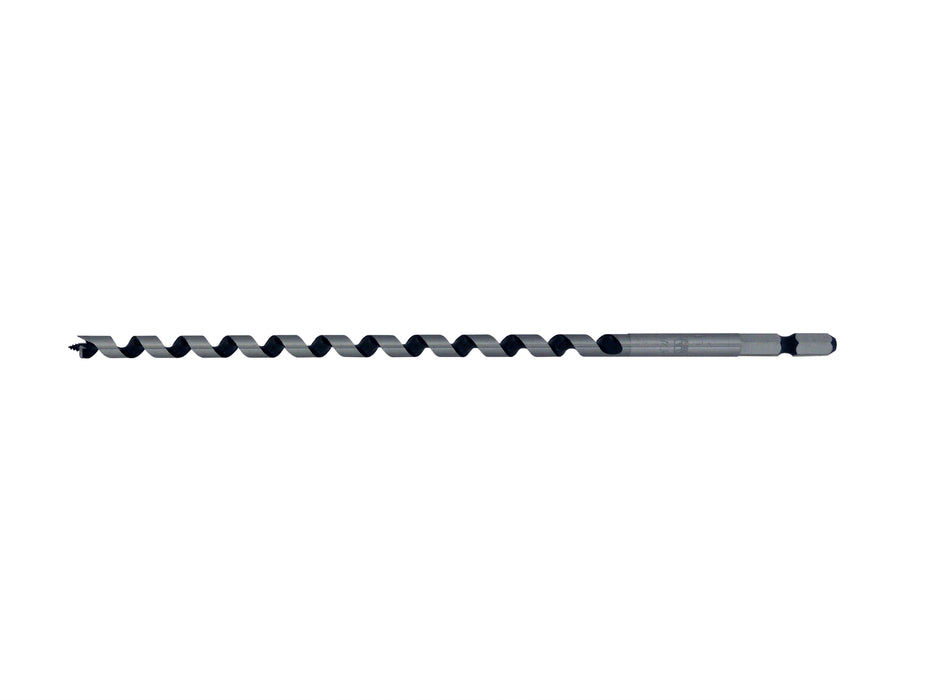

7L-070 7 225 165
6.35

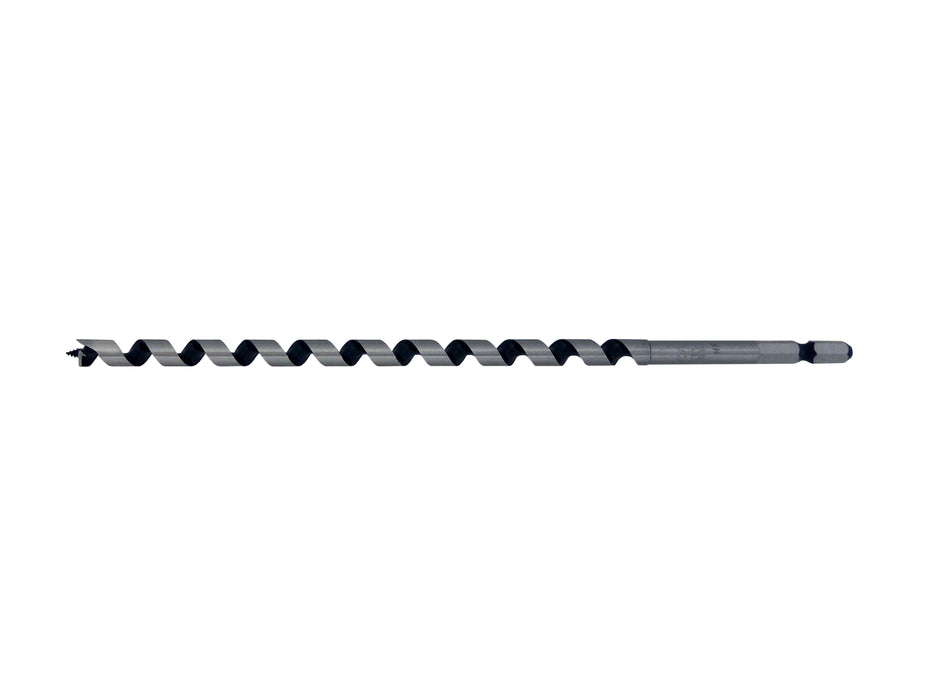

7L-080 8 225 165
6.35

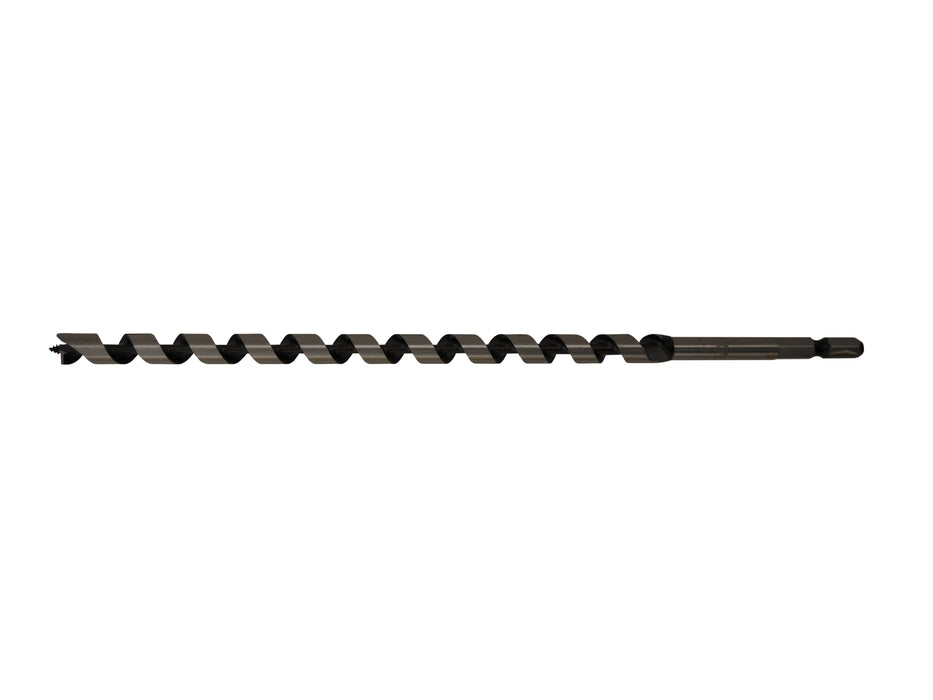

7L-090 9 240 180
6.35

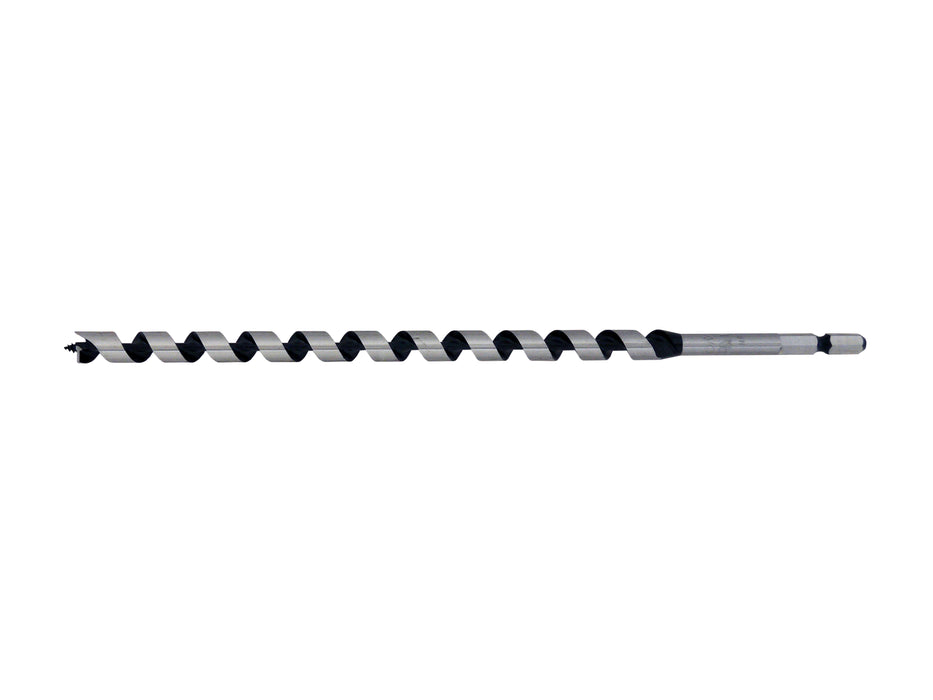

7L-100 10 250 190
6.35

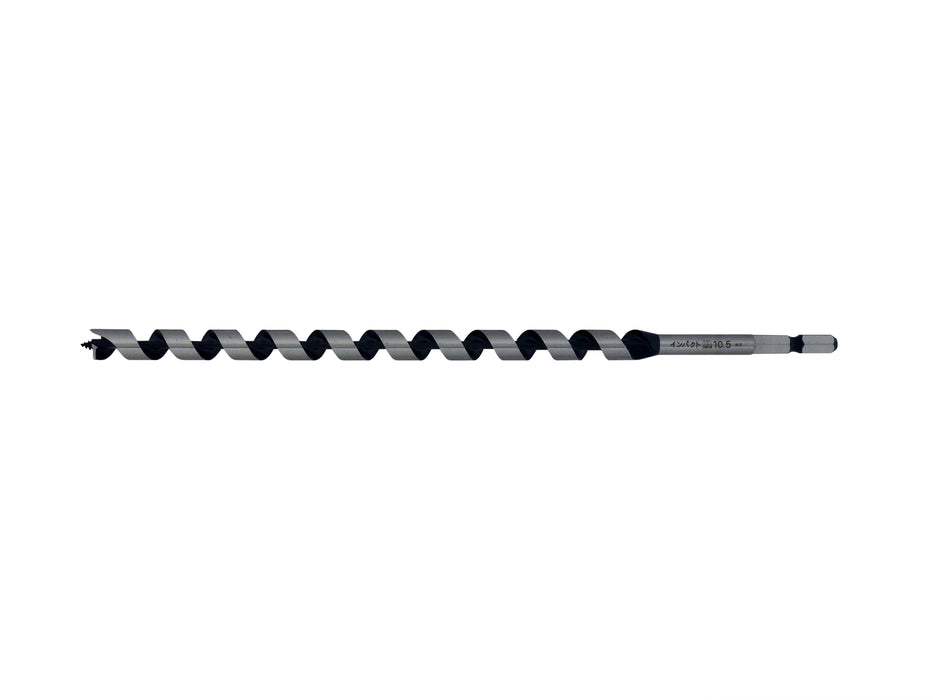

7L-105 10.5 250 190
6.35

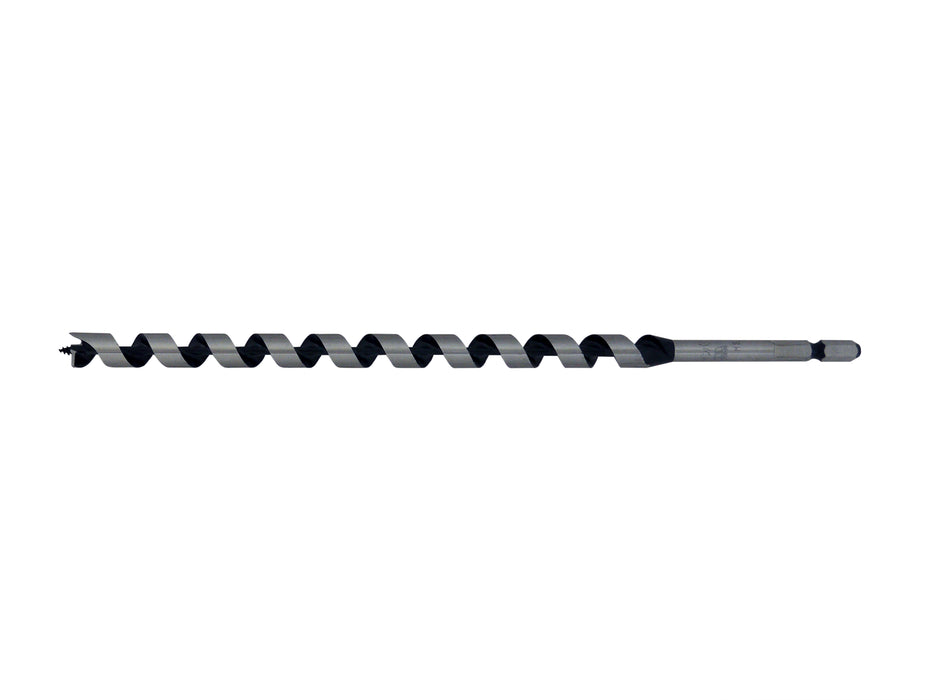

7L-110 11 250 190
6.35

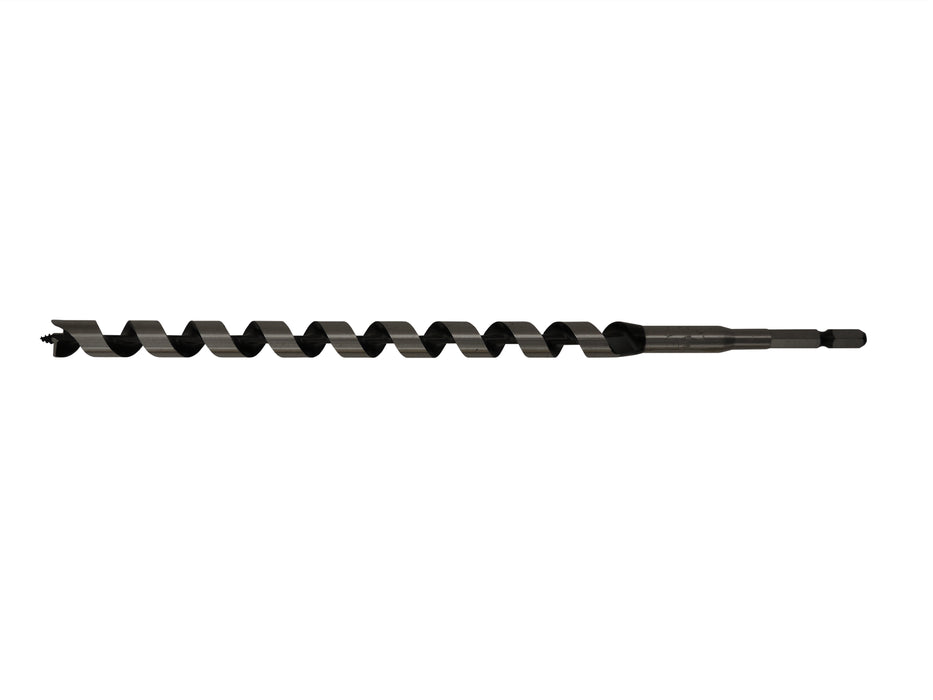

7L-120 12 270 195
6.35

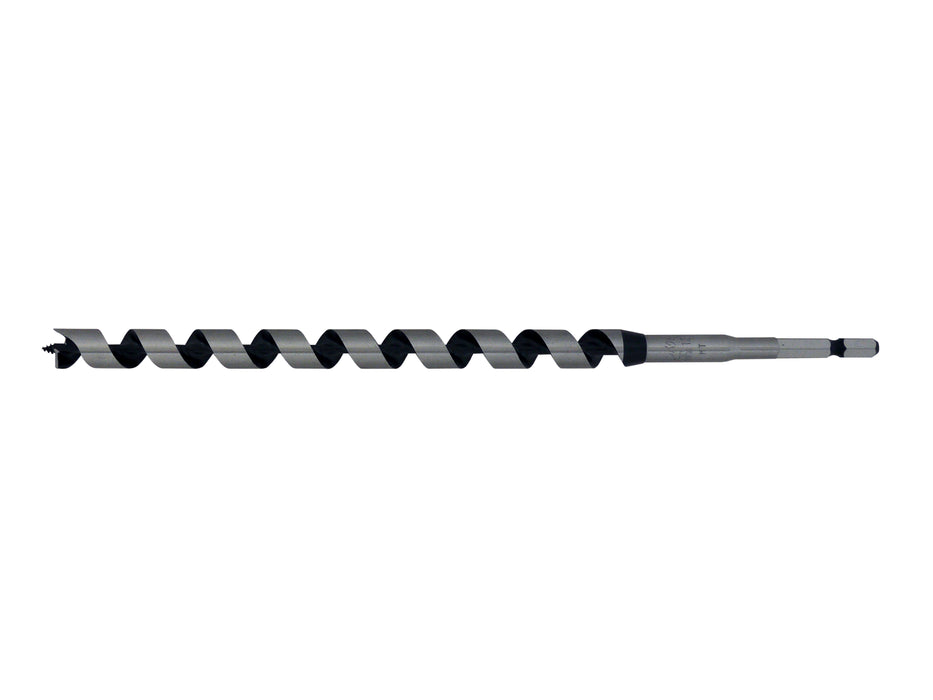

7L-130 13 270 195
6.35

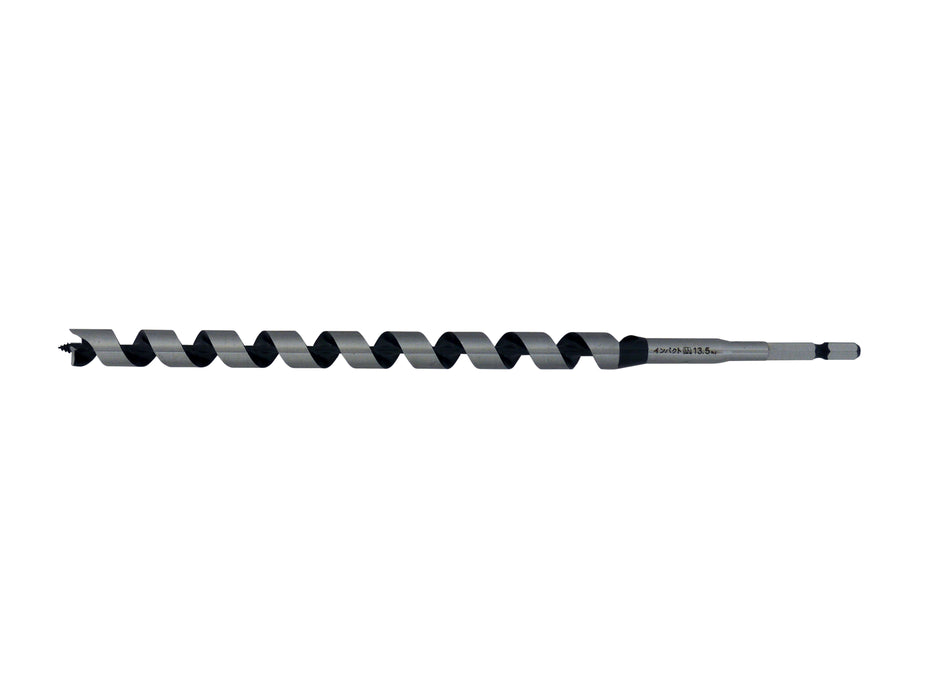

7L-135 13.5 280 205
6.35

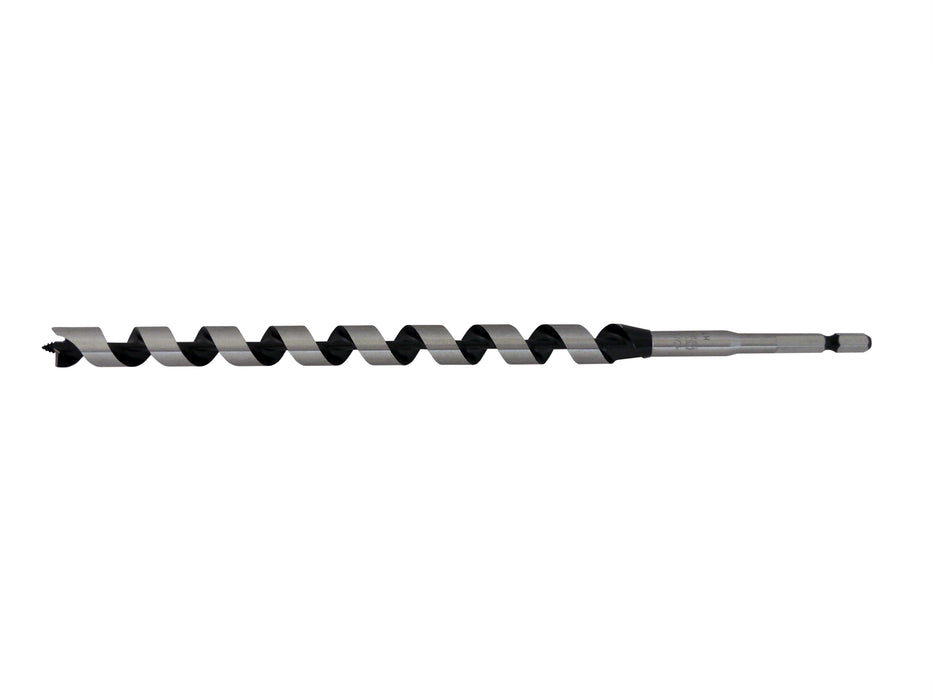

7L-140 14 280 205
6.35

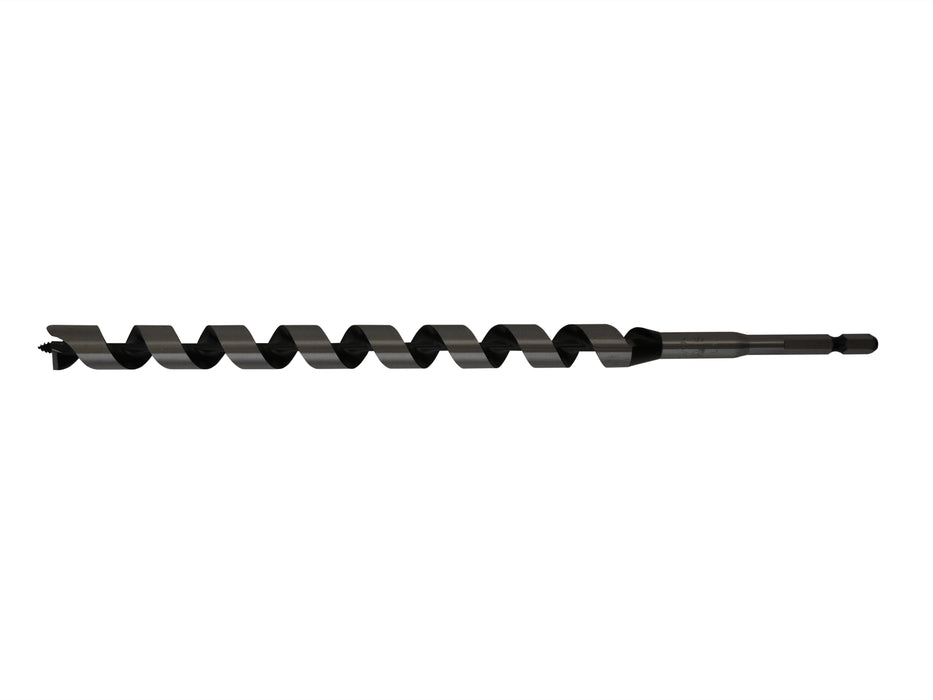

7L-150 15 280 205
6.35

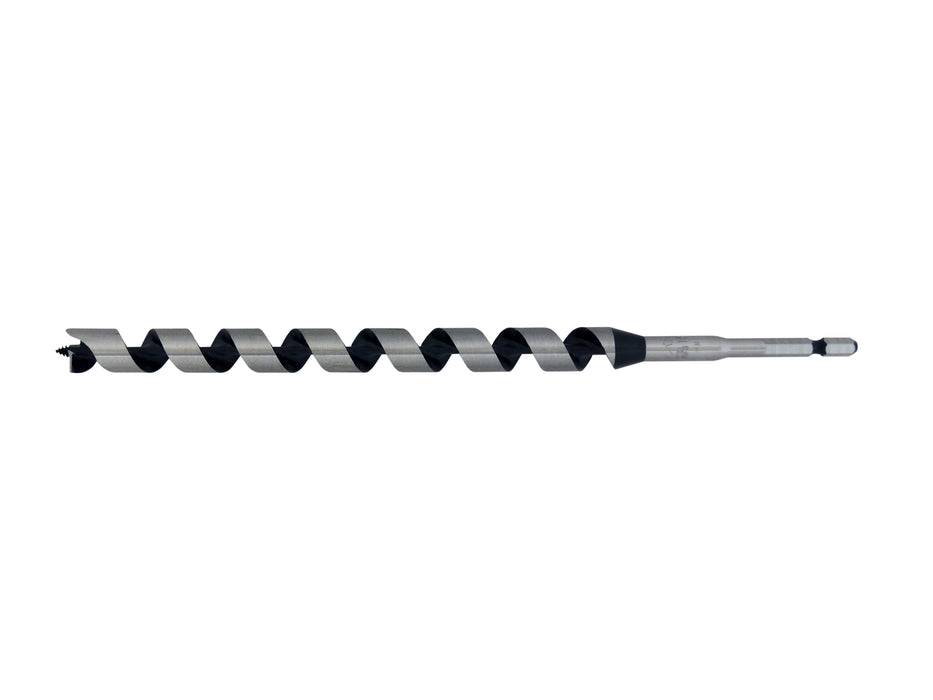

7L-160 16 280 205
6.35

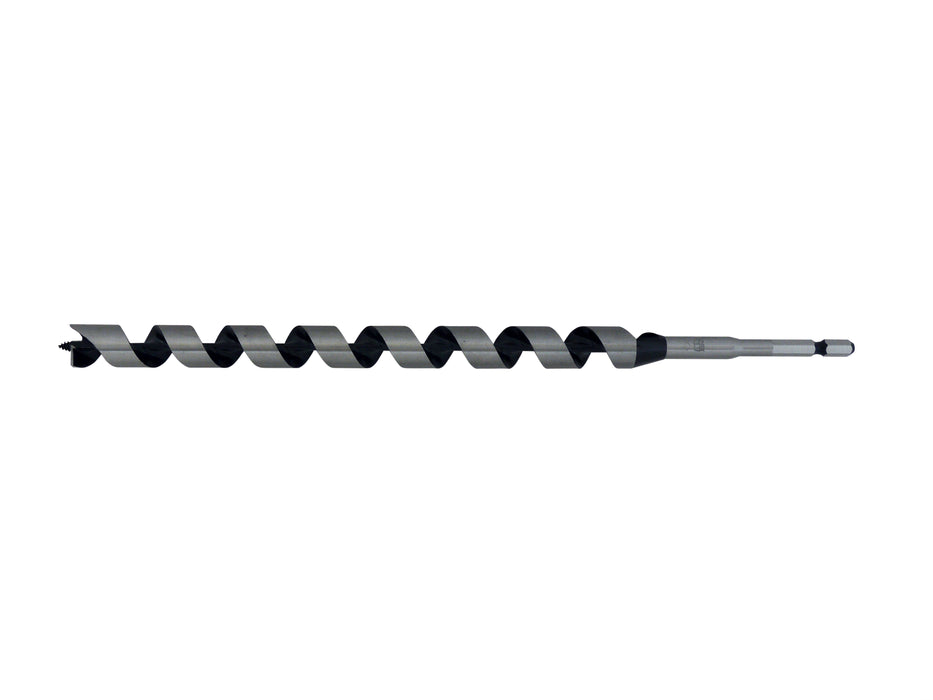

7L-170 17 310 235
6.35

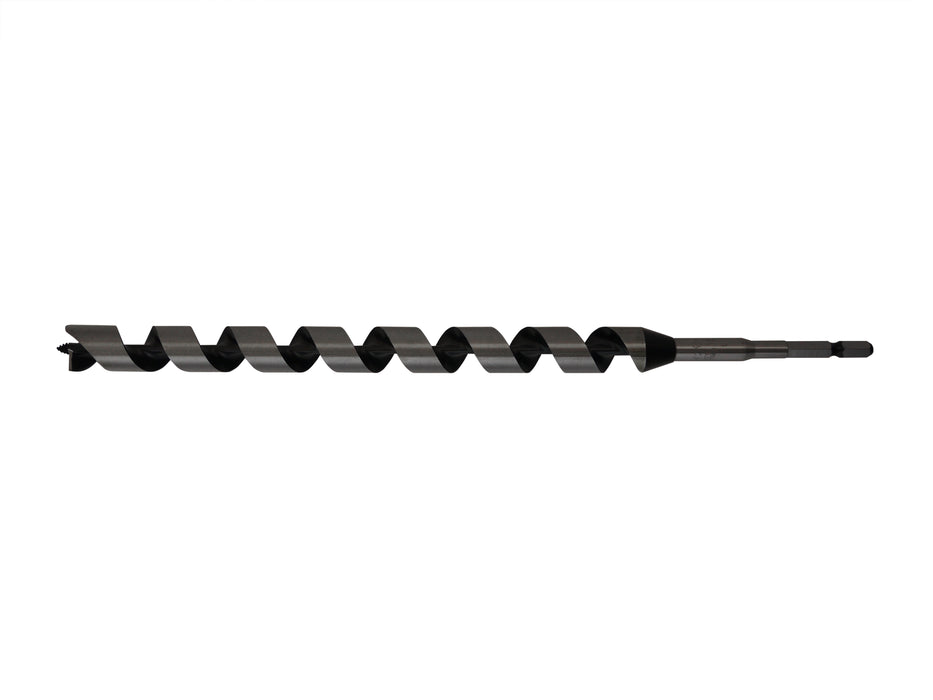

7L-180 18 310 235
6.35

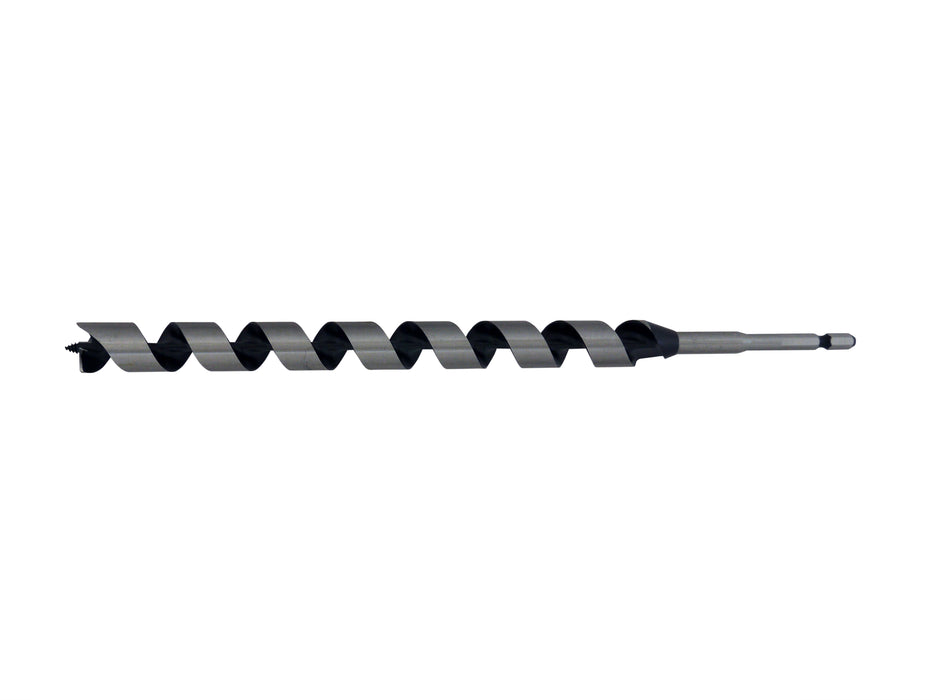

7L-190 19 310 235
6.35

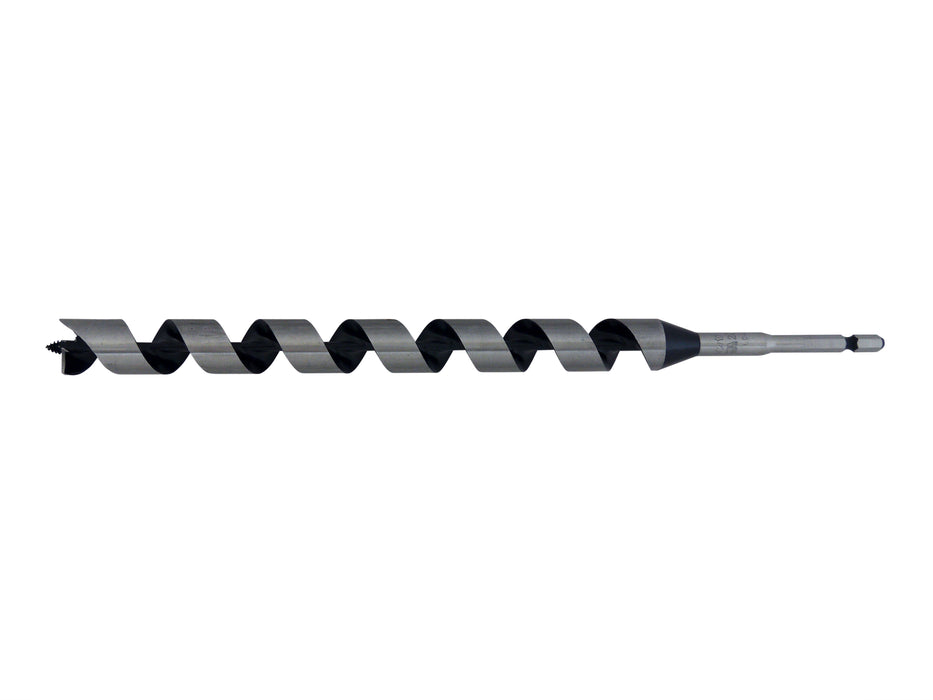

7L-200 20 310 235
6.35

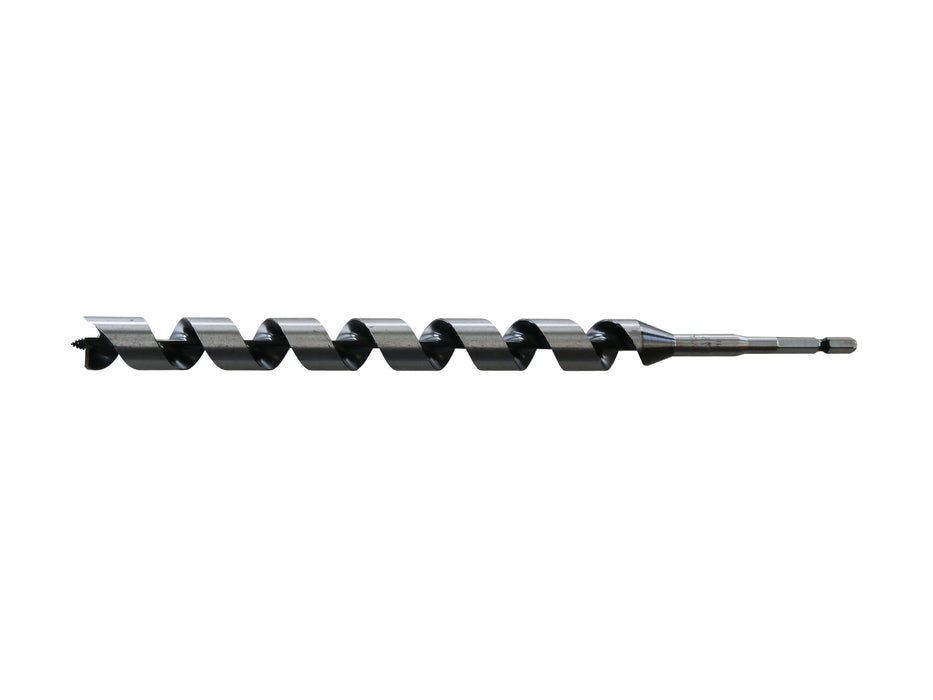

7L-210 21 310 235
6.35
