SHINWA 65194 Telescopic Measure One Direction II D 13 shaku 5 sun
VAT, import taxes, customs duties, tariffs, and related fees are NOT included in our prices. The shipping company charges you these fees, after shipment.
SUMMARY

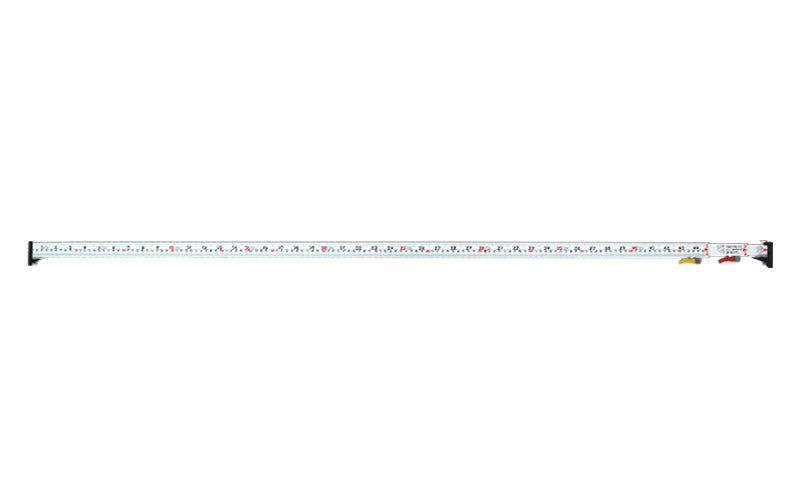

Measure higher ceilings and longer internal dimensions while keeping the reading close at hand. The SHINWA 65194 Telescopic Measure One Direction II D has a measuring range of 1,502–4,093 mm and a product weight of 990 g.
Choose this model when the 65193's maximum reach of 3,640 mm is not enough and your required measurement is within 1,502–4,093 mm. Extend the measure between the surfaces, secure it with the one-touch stopper lever and read the measurement at hand.
Scale: Shaku / Metric (cm), not inches. “13 shaku 5 sun” refers to Japanese units, not feet and inches.
FEATURES
-
One-Person Measuring
The one-direction telescopic design lets you read the measurement at hand when checking ceiling heights and internal dimensions. -

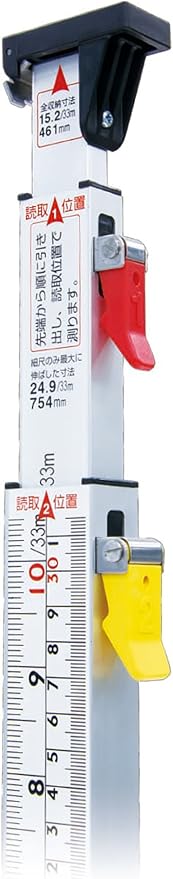

One-Touch Stopper Lever
Secure the extended measure before taking the reading. -
Plastic End Caps
Plastic contact ends help reduce the risk of scratching walls and ceilings. -
External Measurements
Use the attached hook for external-dimension measurements. -
Bold Graduations
Easy-to-read markings help you check the measurement at hand. -

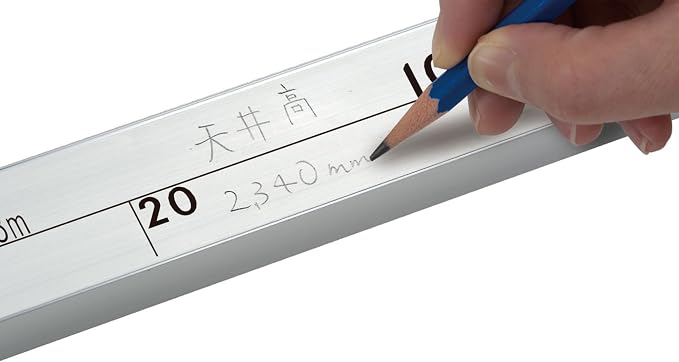

Marking and Scribing
The tape on the back can be used for marks and notes. Large end caps and graduations close to the edges assist with scribing.
SPECIFICATIONS — 65194
| Item Code | 65194 |
|---|---|
| Model | D 13 shaku 5 sun |
| Measuring Range | 1,502–4,093 mm |
| Product Weight | 990 g |
| Scale | Shaku / Metric (cm), not inches |
| Body Size (mm) | Width × Thickness: 33 × 22 Tip × End: 47 × 23 |
PACKING DETAILS
Dimensions: L1580 × W130 × H90 mm
Gross Weight: 1.72 kg
VIDEO
SERIES COMPARISON
This page is for 65194. Choose a model whose range covers your intended measurements. Check both the minimum and maximum measurement. Click or tap a blue underlined model number to open its product page.
| Model | Measuring Range / Weight |
|---|---|
|
65190 A 3 shaku 2 sun |
461–970 mm 300 g |
|
65191 AB 6 shaku 6 sun |
810–2,017 mm 530 g |
|
65192 B 9 shaku 3 sun |
1,078–2,821 mm 710 g |
|
65193 C 12 shaku |
1,351–3,640 mm 890 g |
| 65194 D 13 shaku 5 sun (This Product) |
1,502–4,093 mm 990 g |
|
65195 E 15 shaku 5 sun |
1,704–4,699 mm 1,120 g |
Body size for all six models (mm): Width × Thickness: 33 × 22; Tip × End: 47 × 23.
Scale reminder: Shaku / Metric (cm), not inches.
