GYOKUCHO RAZORSAW LC27-A Curved Saw SK-5 No. 7753
Shipping calculated at checkout. Please click Add to cart button to proceed.
SUMMARY
- A pruning saw that uses a curved blade.
- The curved blade provides powerful cutting power even for thick branches.
FEATURES

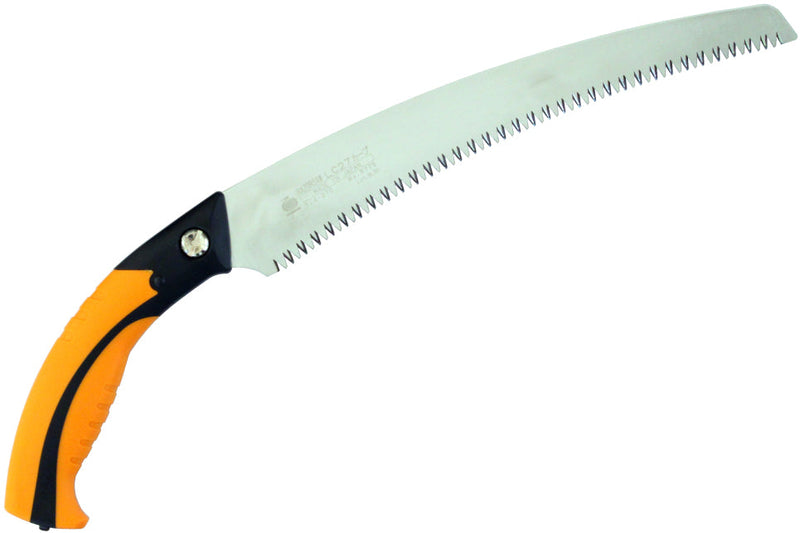

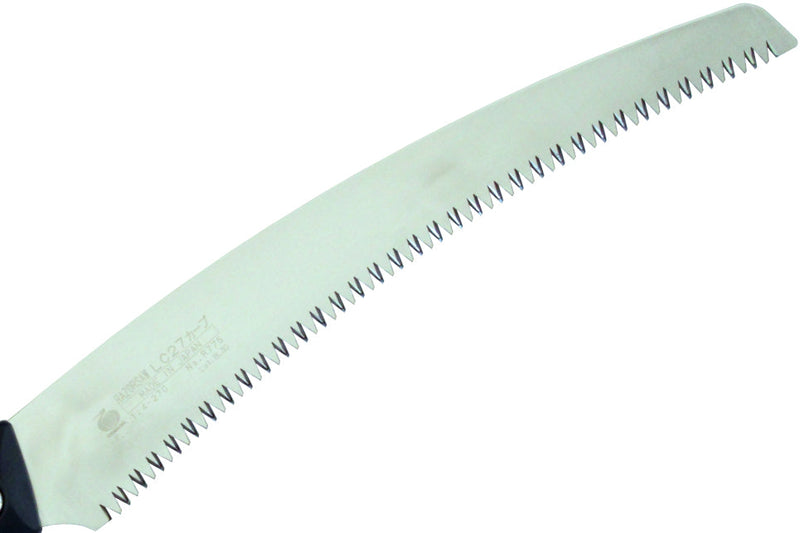

<Curved Blade>
- Curved blade design for effortless cutting of thick branches.
-
Highly effective for forestry work above shoulder height or in unstable footing conditions.
<Back-tapered design>
-
Back-tapered blade for clean, sharp cuts that protect trees ( preventing the formation of knots ).
<Impact hardening>
- Only the surface of the saw blade is heat-treated with impact energy to obtain a hardened layer by heating it to the hardening temperature in 0.003 to 0.005 seconds.
-
The surface hardness is finished to Hv900-1200.

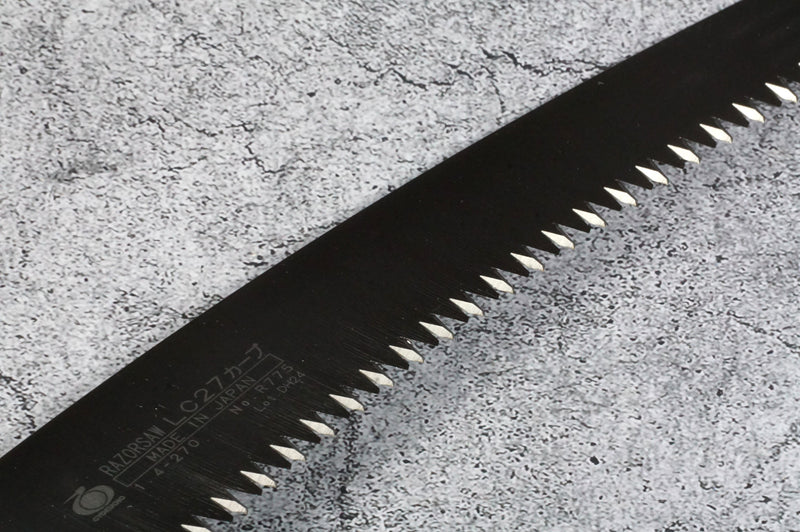

<Side Grinding Blade>
- The edge of the blade is intentionally stepped to improve sharpness.
- The blade is made up of a series of two blades on the left and right sides, both ends of which are sharply pointed like a cutter knife.
- The steps vary from 0.07 mm to 0.22 mm, depending on the application and material thickness.
- Since a saw cannot achieve good cutting performance unless the shavings are discharged, a low step blade acts only to discharge the shavings.
SPECIFICATIONS
Total Length [mm] | 480 |
Blade Length [mm] | 270 |
Blade Thickness {mm] | 1.4 |
Teeth Pitch [mm] | 4.0 |
Blade Width [mm] | 40 |
Weight [g] | 170 |
Material | Blade: SK-5 Handle: Polypropylene& Elastomer resin |
Surface Treatment | Electroless nickel plating |
