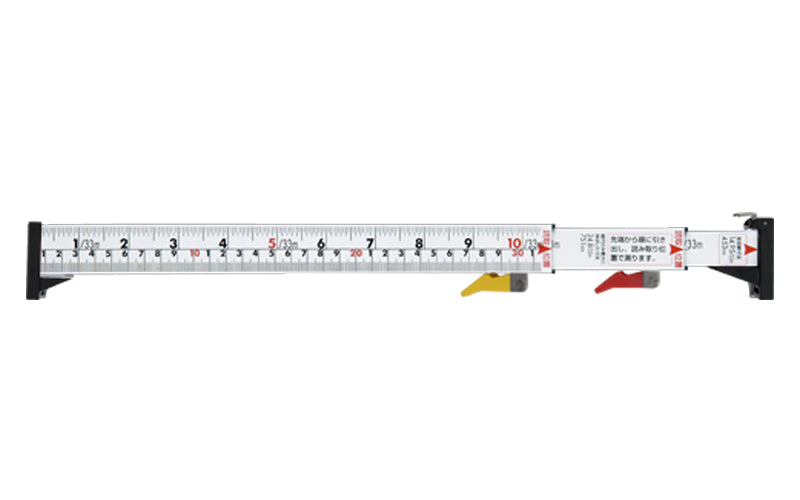

SHINWA 65190 Telescopic Measure One Direction II A 3 shaku 2 sun
VAT, import taxes, customs duties, tariffs, and related fees are NOT included in our prices. The shipping company charges you these fees, after shipment.
SUMMARY
Check shorter internal dimensions with a compact telescopic measure that can be read at hand. The SHINWA 65190 Telescopic Measure One Direction II A has a measuring range of 461–970 mm and a product weight of 300 g.
This is the shortest-range and lightest model in the six-model comparison below. Choose it when your required measurements fall within 461–970 mm; choose a longer model if you need more reach.
Scale: Shaku / Metric (cm), not inches. “3 shaku 2 sun” refers to Japanese units, not feet and inches.
FEATURES
-
One-Person Measuring
The one-direction telescopic design lets you read measurements at hand. -
One-Touch Stopper Lever
Extend the measure between the surfaces and secure it with the lever before reading. -
Plastic End Caps
Plastic contact ends help reduce the risk of scratching the surfaces being measured. -
External Measurements
Use the attached hook for external-dimension measurements. -
Bold Graduations
Easy-to-read markings help you check the measurement. -
Marking and Scribing
The tape on the back can be used for marks and notes. Large end caps and graduations close to the edges assist with scribing.
SPECIFICATIONS — 65190
| Item Code | 65190 |
|---|---|
| Model | A 3 shaku 2 sun |
| Measuring Range | 461–970 mm |
| Product Weight | 300 g |
| Scale | Shaku / Metric (cm), not inches |
| Body Size (mm) | Width × Thickness: 33 × 22 Tip × End: 47 × 23 |
VIDEO
SERIES COMPARISON
This page is for 65190. Choose a model whose range covers your intended measurements. Check both the minimum and maximum measurement. Click or tap a blue underlined model number to open its product page.
| Model | Measuring Range / Weight |
|---|---|
| 65190 A 3 shaku 2 sun (This Product) |
461–970 mm 300 g |
|
65191 AB 6 shaku 6 sun |
810–2,017 mm 530 g |
|
65192 B 9 shaku 3 sun |
1,078–2,821 mm 710 g |
|
65193 C 12 shaku |
1,351–3,640 mm 890 g |
|
65194 D 13 shaku 5 sun |
1,502–4,093 mm 990 g |
|
65195 E 15 shaku 5 sun |
1,704–4,699 mm 1,120 g |
Body size for all six models (mm): Width × Thickness: 33 × 22; Tip × End: 47 × 23.
Scale reminder: Shaku / Metric (cm), not inches.
