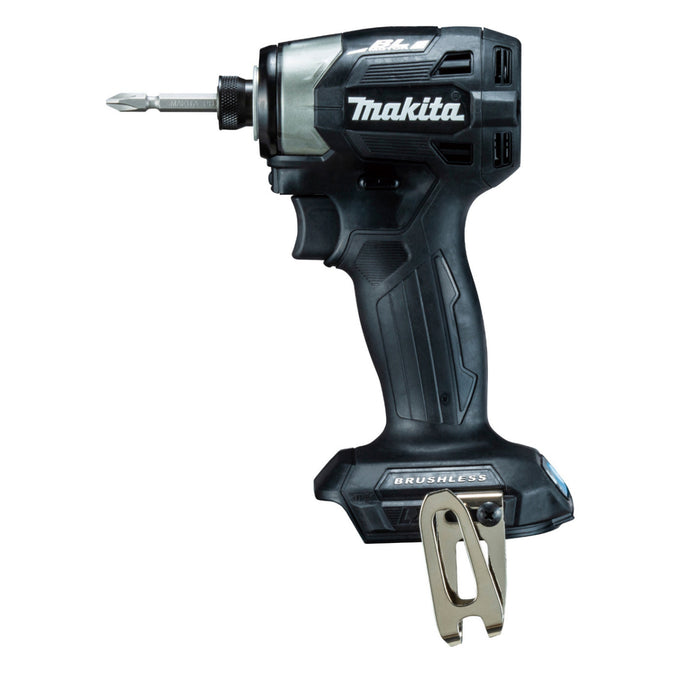

Makita Brushless Impact Driver 18V TD173DZ
Shipping calculated at checkout. Please click Add to cart button to proceed.
SUMMARY
A brushless impact driver powered by 18V Li-Ion battery.
360 degree ring-emitting LED light adopted.
Optimal balance & all-around slim head & comfortable operability are integrated.
Note: This product is a main unit only. A battery and charger are sold separately.
FEATURES
360 degree ring-emitting LED light
Dramatically improved visibility during work.
Approximately 2.5 times brighter (compared to our conventional 18V machine).
Illumination can be switched in 3 levels (strong/medium/weak).
Can be used as a work light
Can also be used as a simple lighting in "light mode".
Lighting time is about 1 hour.
Ease of use, even more extreme
Overall length 111 mm, weight 1.5 kg (with battery installed).
Compact and lightweight body with high power and maximum tightening torque of 180 N m.
The optimum mode can be selected from 4 Modes
1. Wood mode
Start tightening slowly with the trigger fully open, and then tighten at the fastest speed with automatic transmission.
2. Bolt fastening mode
Forward rotation/immediately fastest when the trigger is turned on.
Reverse rotation/automatic stop when the nut is loosened (reverse rotation auto stop).
3. Thin plate screw mode
After the screw penetrates, it automatically stops when an impact is detected.
4. Thick plate screw mode
Reduces screw head jumping and cam-out.
SPECIFICATIONS
| Maximum tightening torque (N m) |
Tightening capacity (mm) | |||
|---|---|---|---|---|
| Small screw | Ordinary bolt | High strength bolt | Course thread | |
| 180 | M4-M8 | M5 to M16 | M5 to M14 | 22 to 125 |
|
Hitting |
Rotation speed (min-1) [rotation/min] |
Hits |
|---|---|---|
| Fastest | 0 to 3,600 | 0 to 3,800 |
| Strength | 0 to 3,200 | 0 to 3,600 |
| During | 0 to 2,100 | 0 to 2,600 |
| Weak | 0 to 1,100 | 0 to 1,100 |
| Wood | 0 to 1,800 | 0 to 3,800 |
| Bolt (for forward rotation) | 0 to 3,600 | 0 to 3,800 |
| For self-tightening screw (thin plate) | 0 to 2,900 | Stop immediately after the start of hitting |
| For self-tightening screw (thick plate) | 0 to 3,600 | 0 to 2,600 |
| Machine dimensions (mm) (length x width x height) |
Mass (kg) (including battery) |
Standard accessories |
|---|---|---|
| 111 x 81 x 234 | 1.5 (with BL1860B installed) |
Phillips bit 2-65 |
| Amount of work per charge (approximate)/screw tightening * | ||
|---|---|---|
| Wood screw ø5.4 x 90mm lauan |
Wood screw ø4.3 x 65mm |
Small screw M8 x 16mm |
| About 550 | About 960 | Approximately 5,280 |
* Numerical values are reference values. It depends on the state of charge of the battery and working conditions.
